Gold processing is a key step in mining. It turns raw ore into usable metal for businesses. The process has several stages: crushing, grinding, separating, and extracting. Each stage needs specific gold processing equipment to get the most gold while keeping costs low. Gold is valuable not just as money or for investments but also for making jewelry, electronics, communication tools, and even spacecraft parts. Honestly, it’s amazing how one metal can be so useful in so many ways!
The first task is breaking big rocks into smaller bits. A gold ore rock crusher smashes hard, gold-filled quartz rocks into pieces smaller than an inch. This makes grinding easier. Jaw crushers handle the big stuff first because they can take large chunks. Then, cone crushers or hammer crushers step in to make the pieces even smaller.

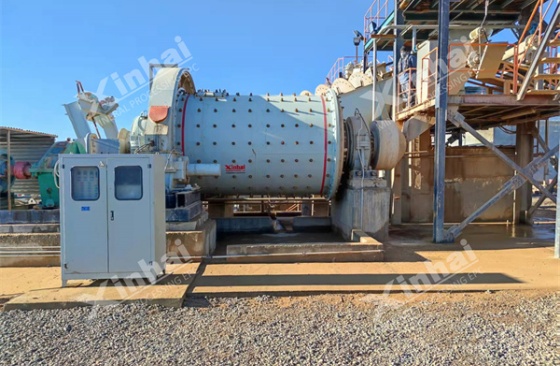

After crushing, the ore needs grinding to free the gold trapped inside other minerals. Grinding helps pull gold out of quartz, granite, stones, hard rocks, tailings, or even black sand. Ball mills and wet pan mills are common choices. Ball mills can grind in two ways: dry or wet. Wet grinding usually works better because it boosts gold recovery. It’s like how wet sand sticks together better than dry sand when you’re building a sandcastle.
Shaking tables are great for grabbing fine gold bits. Also called gold recovery tables or gold separation tables, they’re top-notch for fine gold. They work on quartz rock, gold stones, or placer gold. No chemicals are needed, and they use little energy, which saves money. It’s a simple setup that gets the job done without fuss.

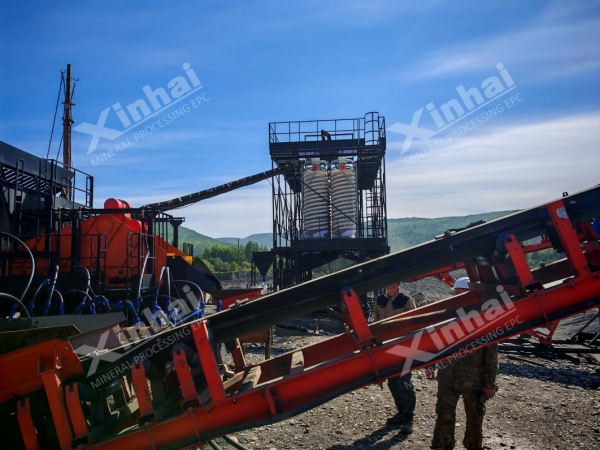

Spiral chutes use gravity to pull heavier gold particles away from lighter junk. They rely on the fact that gold is denser than other minerals. These work best for placer gold and are easy to move and set up because they’re light and don’t take much space. Centrifugal concentrators spin the ore slurry super fast to grab tiny gold particles, like free-milling gold that’s hard to catch otherwise.
For tricky ores, like those with sulfides or super tiny gold bits, flotation is the way to go. Froth flotation uses gold’s natural stickiness to separate it from waste. It’s great for catching fine and ultra-fine gold that gravity methods miss. The process feels a bit like fishing—you’re pulling out the good stuff while leaving the rest behind.
Flotation needs special chemicals to work well. Collectors like xanthates make gold stick to air bubbles. Frothers, such as MIBC, create foam to carry gold up. Activators, like copper sulfate, help the process along, while depressants like lime keep unwanted minerals out. These chemicals tweak how minerals act, making gold easier to grab.

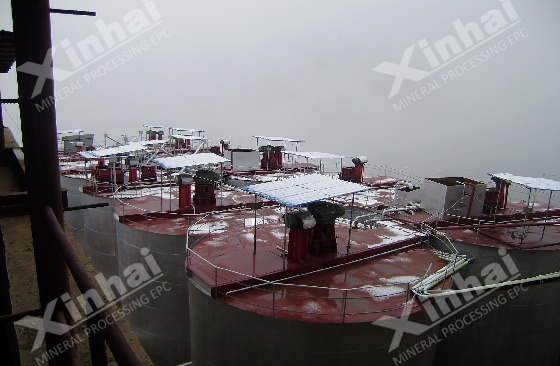

Cyanidation is a top method for pulling gold out of ore using cyanide solutions. Carbon-in-Pulp (CIP) and Carbon-in-Leach (CIL) systems are popular. They use activated carbon to soak up the gold from the liquid. It’s like using a sponge to suck up spilled juice—simple but effective.
Once the carbon grabs the gold, you need to strip it off. Desorption electrolysis systems do this fast. They heat up to 150°C (30-55°C hotter than older models) and use pressures up to 0.5 MPa (0.2-0.5 MPa higher than others). This cuts desorption time to about 12 hours. Plus, they save energy by skipping heat exchange. No sodium cyanide is used in the desorption liquid, which lowers costs and keeps things cleaner. The system includes a desorption column, filter, electrolysis tank, circulation pump, electric heater, carbon injector, air compressor, desorption liquid tank, clean water pump, acid storage tank, magnetic pump, carbon storage tank, control cabinet, silicon rectifier cabinet, and acid washing tank.
After gold is extracted, you’re left with wet tailings. Dewatering equipment, like thickeners, makes the slurry thicker. Filter presses then squeeze out extra water. These steps help meet environmental rules and make tailings easier to handle or reuse. Nobody wants a muddy mess at a mining site!
| Equipment Name | Purpose / Application |
|---|---|
| Jaw Crushers & Cone Crushers | Break large gold-bearing rocks into smaller pieces for easier grinding. |
| Ball Mills & Rod Mills | Grind ore into fine particles to release gold from other minerals; wet grinding improves gold recovery. |
| Shaking Tables | Recover fine gold particles from quartz, rocks, or placer gold using gravity separation without chemicals. |
| Spiral Chutes | Separate heavier gold particles from lighter minerals using gravity; portable and space-saving. |
| Centrifugal Concentrators | Capture very fine and free-milling gold by spinning ore slurry at high speed. |
| Flotation Cells & Agitators | Recover gold from sulfide ores and ultra-fine particles through froth flotation. |
| Flotation Reagents | Enhance flotation efficiency using collectors, frothers, activators, and depressants. |
| Leaching Tanks & CIP/CIL Systems | Dissolve gold into cyanide solution and recover it using activated carbon adsorption. |
| Desorption Electrolysis Systems | Strip gold from loaded carbon under high temperature and pressure, producing high-purity gold efficiently. |
| Thickeners | Increase slurry density by removing excess water from tailings after gold extraction. |
| Filter Presses | Squeeze out remaining water from tailings, making waste easier to handle and environmentally safer. |
Picking the right gold processing machinery isn’t a one-size-fits-all deal. You need to think about:
Ore type: Is it hard rock or placer gold? Each needs different tools.
Particle size: Smaller bits need finer-tuned machines.
Output goals: How much gold do you want to process daily?
Chemical makeup: Some ores have tricky minerals that need special handling.
Power supply: Do you have steady electricity on-site?
Environmental rules: Some places have strict laws on waste or chemicals.
Budget: Can you afford high-end gear, or do you need cheaper options?
The type of gold ore and mining style decide what gold processing equipment you’ll buy. For example, a small placer gold operation in Alaska might stick to spiral chutes, while a big hard-rock mine in Australia could need a full CIP system.
New tech has made gold beneficiation equipment smarter. Many machines now have automatic controls, like liquid level monitors, temperature gauges, and computer systems that run things smoothly. For instance, shaking tables use sensors to keep the ore feed just right. Automated pressure valves in electrolysis units stop leaks and make work safer. These upgrades cut down on mistakes and keep workers out of harm’s way. It’s like having a robot helper that never gets tired!
Small mines, like those run by a family or a small crew, often use affordable tools. Wet pan mills or shaking tables are popular because they don’t cost a fortune. A wet pan mill is great for grinding ore in small setups. For example, a miner in Ghana might use one to process 2 tons of ore daily, keeping things simple and cheap.
Bigger mines need heavy-duty systems. They start with crushers, then move to ball mills, and tie it all together with CIP or CIL setups. These can handle tons of ore per hour. A large mine in Nevada, for instance, might process 10,000 tons daily using high-speed flotation cells and advanced desorption units. It’s a whole different scale!
Find suppliers with a solid history of making tough machines. Check if they offer warranties and quick support. Good suppliers know mining and can help when things break down. For example, Xinhai Mining with 30 years of experience and 24/7 phone support is a safer bet than a new company with no track record.
Suppliers should tweak equipment to fit your needs, like:
Ore type: Matching machines to your ore’s traits.
Capacity: Building systems for your daily output.
Site layout: Fitting equipment to your space.
Local rules: Meeting environmental or safety standards.
A good supplier might adjust a ball mill’s size for a mine in South Africa to handle 5 tons per hour instead of a standard 10 tons, saving costs.
