Molybdenum, a shiny silver metal, really stands out in factories and workshops. It’s super tough, can handle crazy heat, and doesn’t rust easily. This stuff is a total champ for beefing up steel alloys, making them stronger, harder, and able to last through serious wear and tear. But that’s not all—it also plays a big role in chemical plants as a catalyst, in gadgets for thin films and microchips, and in energy stuff like nuclear plants and oil refineries. Digging into how molybdenum is extracted—from pulling it out of the ground to cleaning it up—shows why it’s such a hot commodity. So, let’s walk through the process with some real-life examples and a bit of hands-on insight. Gotta say, it’s pretty nuts how much effort goes into nabbing this metal!
Molybdenum likes to hide in a handful of minerals, but molybdenite (MoS₂) is the only one worth using for products that companies can actually sell. Sometimes, it’s just chilling by itself in ore deposits, like at the Climax mine in Colorado. Other times, it’s all tangled up with copper’s sulfide minerals, like you see at Chile’s giant Chuquicamata copper mine.
Molybdenum mines come in three main types:
Primary mines: These zero in on molybdenite alone. The Henderson mine in Colorado is a great example, where it’s all about molybdenum.
By-product mines: Copper is the main goal here, but molybdenite adds extra value. Utah’s Bingham Canyon mine pulls this off.
Co-product mines: These dig up both molybdenite and copper, splitting the focus.
Roughly 40% of molybdenum comes from primary mines. The other 60% sneaks out as a bonus from copper or, sometimes, tungsten mining. It’s like finding extra fries at the bottom of the bag—nobody’s complaining!
So, how is molybdenum extracted? It all starts with mining, and the approach depends on where the molybdenite is. Near the surface? Open-pit mining does the trick. Huge trucks and shovels haul ore at places like Climax. If the molybdenite’s buried deep or tangled with copper or tungsten, underground mining takes over. That means digging tunnels, which costs more but gets the job done.
In by-product mines, like those chasing copper at Bingham Canyon, molybdenite is a side prize. During copper processing, workers make sure to grab the molybdenum too. It’s like sorting through a pile of mixed coins to pick out the shiny quarters—careful work pays off.

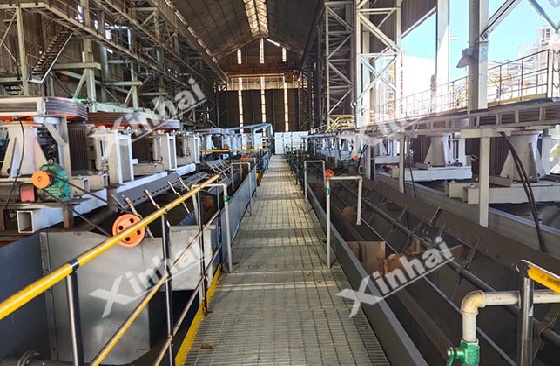

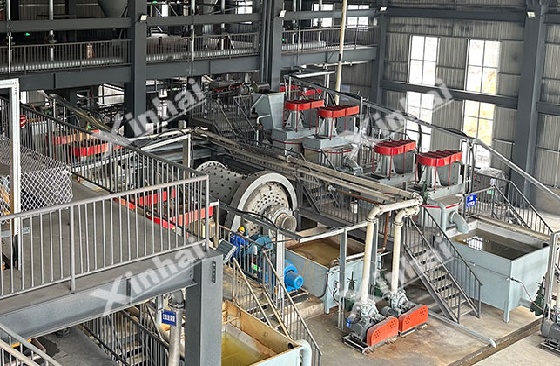

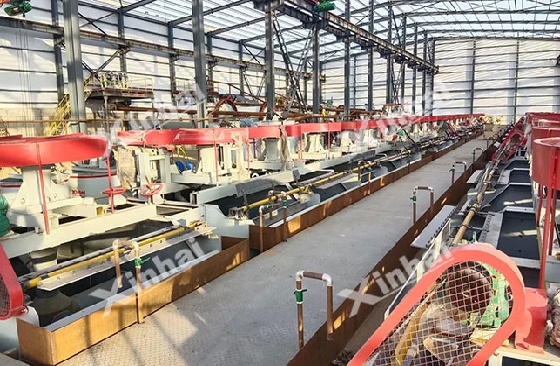

After mining, the ore gets crushed into small chunks. Then, it’s ground even finer to free up the good stuff from the waste rock. Next comes flotation, a process using special chemicals to make molybdenite float to the top, leaving behind junk or copper. Picture skimming cream off milk—it’s that kind of vibe.
This creates a molybdenite concentrate (MoS₂) that’s about 85–92% pure. If it’s a copper by-product, there’s usually less than 0.5% copper left. At mines like Sierrita in Arizona, they might use acid leaching to clean out stray bits of copper or lead. It’s a lot of effort, but it makes the concentrate ready for the next step.
To turn MoS₂ into something useful, like molybdic oxide (MoO₃), the concentrate gets roasted. About 97% of MoS₂ becomes technical-grade MoO₃, which is 85–90% MoO₃. This happens in tall furnaces with multiple levels. The concentrate drops from the top, while hot air and gases blow up from the bottom. Big rakes stir the mix to keep the reaction going strong.
Sulfur dioxide comes off as a pesky gas, so plants use sulfuric acid systems or lime scrubbers to trap it. The final MoO₃ has at least 57% molybdenum and less than 0.1% sulfur. At Freeport-McMoRan’s facilities, they’ve got this down to a science, keeping the air clean and the product top-notch.
Technical-grade MoO₃ is solid, but some jobs need super-pure molybdenum. To get there, it’s refined more. Metallic molybdenum comes from heating pure MoO₃ or ammonium dimolybdate (ADM) with hydrogen gas in special furnaces. The hydrogen flows against the material, turning it first into a dioxide, then into a fine powder.
This powder can be shaped into rods, plates, or wires. For example, companies like Plansee in Austria use it to make tiny parts for electronics. It’s energy-intensive, but the precision is worth it for high-tech gear.
Once refined, molybdenum comes in forms like powder, rods, wires, or pellets, each suited for specific tasks. Powders go into catalysts; wires work in electronics. Packaging is super careful to avoid contamination. Oxides get packed in drums with special linings, while powders are sealed in containers with gases like nitrogen to block rust. I read about one plant where they treated the stuff like rare gems—total overkill, but it works!
Mining and refining can mess with the environment, but the industry’s trying to do better. During roasting, those sulfuric acid plants and lime scrubbers catch sulfur dioxide to keep the air cleaner. At mine sites, tailings—leftover sludge—are stored in lined ponds to stop leaks into groundwater. After mining’s done, places like Climax replant grass and trees to fix the land.
Water’s a big deal too. Many mines, like Henderson in Colorado, recycle up to 80% of the water used in flotation. It’s not perfect, but it shows they’re thinking about the planet, not just profits.
New tools are making molybdenum extraction smarter and less harmful. Automated flotation systems, like those at modern mines, adjust chemicals on the fly for better results. At Questa mine in New Mexico, sensor-based sorting picks out rich ore before grinding, saving power. Bioleaching, where bacteria help pull out metals, is catching on for low-grade ores. It’s slow but uses way less energy.
In refining, new furnace designs save energy while keeping the metal pure. Digital sensors track ore quality in real time, cutting waste. These upgrades aren’t just cool—they make the whole process more efficient and easier on the environment.
1.What mineral is primarily used for extracting molybdenum?
Molybdenite (MoS₂) is the only mineral good for making marketable molybdenum products.
2.Is most molybdenum obtained directly through mining?
About 40% comes from primary mines. The rest, 60%, is a by-product of copper or sometimes tungsten mining.
3.What process converts MoS₂ into usable oxide form?
Roasting turns 97% of MoS₂ concentrate into technical molybdic oxide (85–90% MoO₃).
4.How pure is technical-grade MoO₃ after roasting?
It has at least 57% molybdenum and less than 0.1% sulfur.
5.What method produces metallic-grade molybdenum?
Hydrogen reduction of pure MoO₃ or ammonium dimolybdate (ADM) creates metallic molybdenum.
