With copper prices climbing steadily, the market demand for copper-cobalt ore processing is growing rapidly. The level of expertise and precision in beneficiation technology directly determines the resource utilization rate and ultimate profitability of mining projects.
Xinhai Mining has years of deep expertise in the field of mineral processing testing. We possess not only a professional R&D team in our laboratories and comprehensive testing equipment, but also extensive experience in separating various types of minerals. Specifically targeting the characteristics of copper-cobalt ores, we design tailored test flowsheets using selective flotation. From grinding and pulp conditioning to concentrate production, every step is scientifically controlled and precisely executed to achieve efficient separation and high-quality recovery of copper and cobalt minerals.
Whether it's mineralogical analysis, flowsheet design, reagent selection, or process optimization, Xinhai is committed to providing suitable beneficiation test solutions for various copper-cobalt projects with professional, rigorous, and efficient service. This provides a solid technical foundation for subsequent mining project engineering and construction.

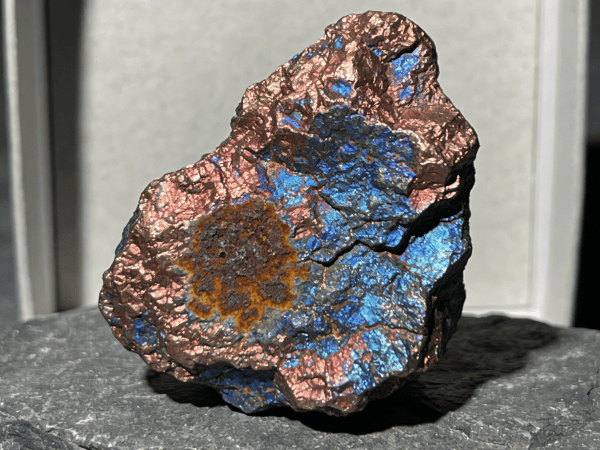

Given the complex mineral composition and great difficulty of separation for copper-cobalt ores, Xinhai Mining has developed a standardized and refined selective flotation test flowsheet tailored to these characteristics. The core principle followed is "flotation of copper first, followed by sulfur (cobalt)." Through multi-stage precise control, efficient separation of copper and cobalt minerals is achieved. The entire process is interlinked and progressive, with strict control at every stage to ensure the test results are scientific and practical, providing a direct process reference for actual production.

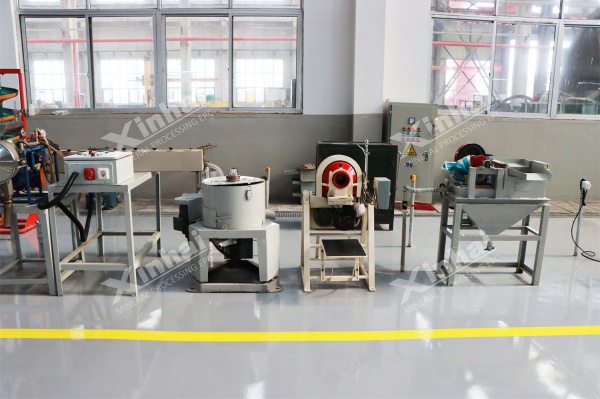

Grinding and pulp conditioning are the first and critically fundamental steps in beneficiation testing. If not done well, subsequent flotation performance will be affected. Based on the actual characteristics of the raw copper-cobalt ore, the Xinhai laboratory determines the grinding time and fineness to achieve sufficient liberation of individual minerals, creating optimal conditions for subsequent flotation.
Simultaneously, by precisely adding regulators to control the pulp's pH value, we can effectively depress gangue minerals like iron sulfides while ensuring full contact and reaction between valuable minerals and reagents. This enhances flotation efficiency from the outset and solidifies the foundation for the selective flotation of copper minerals.

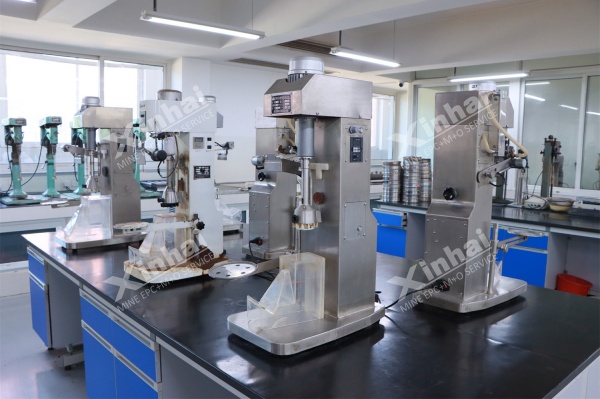

Copper flotation is divided into two stages: rougher and scavenger. We employ a tailored collector system and strictly control reagent dosage and agitation time to achieve precise collection of copper minerals.
Rougher Stage: Using suitable high-efficiency collectors to maximize the recovery of copper minerals.
Scavenger Stage: Processing the tailings from the rougher stage to recover any residual copper minerals that weren't collected, minimizing the loss of copper resources.
Throughout the copper flotation process, we optimize the reagent scheme and operational parameters to effectively reduce gangue entrainment, significantly increase the copper concentrate grade, and truly achieve efficient enrichment of copper minerals.
After copper flotation, the process moves to the cobalt flotation stage. First, we precisely adjust the pulp environment and add specific activators to break the depression of cobalt-bearing minerals, fully activating them. Then, combined with a customized collector system, cobalt rougher flotation is carried out to achieve preliminary enrichment of cobalt minerals. The rougher concentrate undergoes a cleaning stage after settling. Through multi-stage, fine-tuned cleaning, the quality of the cobalt concentrate is further enhanced, ensuring high recovery of cobalt values and making full use of both copper and cobalt resources.
After completing the roughing and scavenging stages for copper and cobalt, the laboratory performs cleaning operations on both the copper and cobalt concentrates separately to optimize their quality.
For Copper Concentrate: We precisely control pulp density and conditions to further remove impurities and increase the purity of the copper concentrate.
For Cobalt Concentrate: We employ a reagent-free (blank) cleaning process, allowing physical separation to further enrich the cobalt minerals, ultimately yielding high-quality copper and cobalt concentrate products.
Throughout the testing process, we strictly monitor the indicators at each stage to ensure optimal separation performance, providing process parameters that can be directly applied in actual production.
Xinhai Mining's selective flotation test flowsheet for copper-cobalt ores is the result of years of technological development and accumulated expertise in the beneficiation testing field. From the overall flowsheet design to on-site practical operations, from precise reagent selection to fine-tuning of parameters, every detail reflects Xinhai's professionalism and rigor, forming our unique technical advantages.
The core of this flowsheet follows the scientific principle of "using high pH (lime) to depress sulfur (pyrite), then re-adjusting pH for activation." By precisely controlling the pH value, we achieve sequential flotation of copper and cobalt minerals, effectively solving the industry challenges of gangue depression and mineral separation during copper-cobalt ore processing. Furthermore, based on the distinct characteristics of copper and cobalt minerals, we apply tailored reagent systems. This ensures high recovery efficiency while significantly boosting concentrate grades, achieving the dual goals of "efficient separation + high-quality recovery."
More importantly, Xinhai's laboratory houses a highly experienced technical R&D team. Our team members have long-standing, deep expertise in the field of mineral separation. They are familiar with the mineralogical characteristics of copper-cobalt ores from different mining areas and with varying grades. They can flexibly adjust the test flowsheet and parameters based on the actual conditions of the client's raw ore, providing customized test solutions. This ensures that the test results are more aligned with the needs of actual production, truly achieving a "tailor-made" approach.
From small-scale laboratory testing to on-site implementation in mining projects, Xinhai Mining Technology, as its core, offering global mining clients one-stop, full-industry-chain mining engineering services.
We possess a comprehensive mining service system, capable of supporting copper-cobalt projects every step of the way – from initial beneficiation testing, process design, and equipment supply, to later-stage on-site installation, commissioning, and operation guidance. Our core capability lies in accurately translating laboratory test results into practical production processes. Based on test data, we tailor-make exclusive concentrator construction plans for our clients, ensuring that test results are implemented effectively. This helps our clients' copper-cobalt projects achieve efficient, high-quality, and green production.
If you have a copper-cobalt ore requiring beneficiation testing, plant construction, or EPC turnkey services, please contact Xinhai via WhatsApp: +8613811510145. We will provide you with free, professional consultation.
