Gold recovery is a vital part of mining and metal processing. It uses various chemical and physical steps to pull gold from ore. Among many methods, adsorption, desorption, and electrowinning (ADE) stand out as a highly effective and eco-friendly approach. These techniques are popular in modern gold plants because they recover a lot of gold and are kinder to the environment.
Older methods like gravity separation, flotation, amalgamation, and cyanidation have been around for years. But the use of activated carbon for adsorption changed the game. It grabs gold from liquid solutions efficiently. The ADE method builds on this by adding desorption and electrowinning to collect solid gold. Honestly, it’s pretty impressive how far this tech has come.
The desorption and electrowinning steps are super effective for getting gold out of solutions. They can pull in over 95% of the gold, which is why many mines choose them.
The adsorption stage kicks off the ADE process. Here, activated carbon is mixed into a cyanide solution holding dissolved gold. The carbon grabs the gold ions selectively. Common setups like carbon-in-pulp (CIP), carbon-in-leach (CIL), and heap leaching make this step work smoothly.
Activated carbon has a porous structure with a huge surface area. This lets it trap gold complexes well. But over time, the carbon gets clogged with organic gunk and leftover metals. It’s kind of like a sponge that’s soaked up too much.
In gold mining processes like CIP, CIL, and heap leaching, activated carbon gets dirty with organic stuff during adsorption. Even after desorption, some of this junk sticks around or hides in the carbon’s tiny pores. This messes with its ability to grab gold. So, reactivation and regeneration are needed to get the carbon back in shape.
Desorption is all about pulling gold off the loaded carbon. A special solution is used, and the process happens under specific heat and pressure conditions.

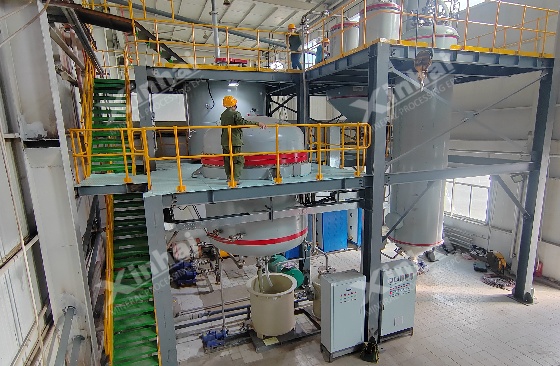

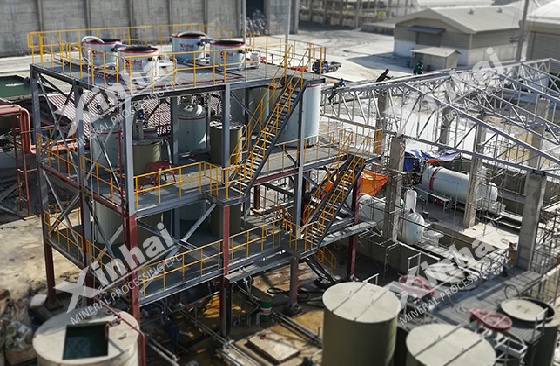

Gold desorption electrolysis equipment is key to getting gold out and separated. Each piece of equipment has its own role and unique features. In real-world use, you pick the right gear based on things like production size, process needs, and gold content. Proper setup and operation are crucial to make sure desorption works well and the gold stays high-quality.
Modern systems use high heat for quick desorption. The temperature can hit 150°C, which is 30-55°C hotter than older models. Operating pressures reach up to 0.5 MPa, about 0.2-0.5 MPa higher than others. This cuts desorption time to around 12 hours. Pretty fast, right?
Also, these systems are efficient. They don’t need heat exchange at similar temperatures, so they use less energy overall. They’re cyanide-free, meaning no sodium cyanide is added to the desorption liquid. This saves money and cuts pollution. Plus, they produce high-grade gold mud, so there’s no need for extra electrolysis steps, making gold extraction simpler.
Electrowinning comes right after desorption. An electric current runs through the solution with dissolved gold ions. The gold sticks to cathodes, usually made of stainless steel or other conductive materials, as solid metal.
This step involves stripping gold from carbon with a solution, then depositing it onto the cathode through electrolysis. It ensures efficient recovery and purification.
How well electrowinning works depends on things like current strength, voltage, solution makeup, temperature controls, and equipment design. Get these right, and you’re golden—literally.
Gold desorption and electrowinning are key purification steps. Gold has been a big deal for humans forever, and these processes make sure we can extract it cleanly and effectively.
The ADE system works like a smooth, connected loop. Each stage flows into the next without hiccups:
Adsorption grabs dissolved gold onto activated carbon.
Desorption strips gold off using hot, caustic solutions.
Electrowinning collects solid gold onto cathodes.
Carbon Regeneration cleans the carbon for reuse.
This setup makes the most of resources while cutting down on waste. It’s efficient and keeps things moving.

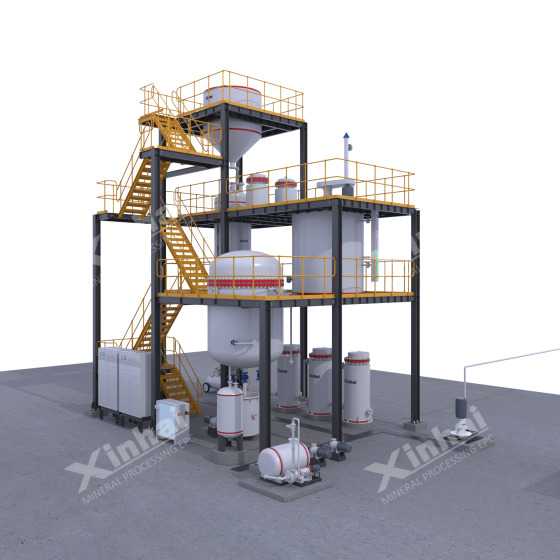

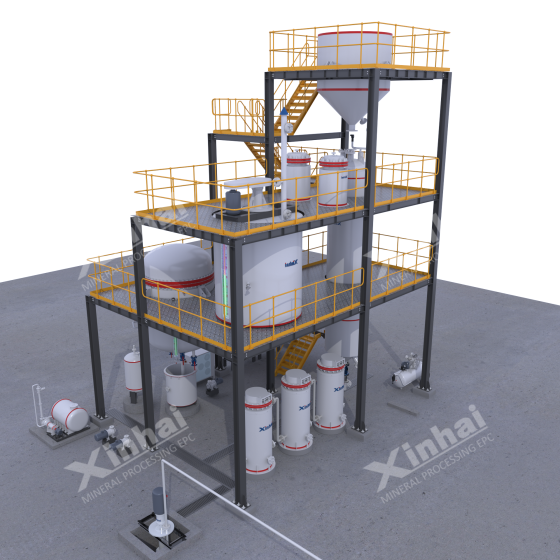

Regenerating activated carbon is critical for both metal processing and water treatment systems. The desorption electrolysis system includes a desorption column, filter, electrolysis tank, control cabinet, and acid washing tank. These modular parts allow the system to run continuously with little downtime.
Several things affect how well an ADE system works:
Ore grade: More gold in the ore means better recovery potential.
Carbon activity: Dirty or worn-out carbon lowers adsorption performance.
Temperature & pressure: Higher heat and pressure speed up reactions.
System automation: Automated controls keep things consistent.
The system comes with liquid level control, temperature control, and automatic systems to keep everything running smoothly.
Also, maintaining equipment is a big deal. Regular care extends the gear’s life and boosts production efficiency. Skipping maintenance is like forgetting to change your car’s oil—it’ll cost you later.
Being kind to the environment is a top priority in modern mining. The ADE process has big advantages over older methods. It uses fewer harmful chemicals, which lowers the risk of polluting the environment.
From a safety angle, the system has triple safety features: smart system controls, automatic pressure relief, and safety valves. These protect workers during high-pressure operations and create a safer workplace.
New tech keeps improving ADE systems:
High-efficiency heaters cut energy use.
Smart sensors track processes in real time.
Modular designs make scaling up easy.
Cyanide-free options support eco-friendly mining.
Extracting gold from ore is complex and needs specialized methods. By pulling out high-purity gold, these processes boost the efficiency and sustainability of mining operations. It’s exciting to see how these advancements make mining cleaner and smarter.
A medium-sized mine in Nevada adopted a low-consumption rapid desorption electrolysis unit with automated controls. The desorption temperature hit 150°C, speeding up the process by 35% and cutting energy costs by 20%. This upgrade saved time and money while keeping output high.
A gold operation in Australia faced issues with fouled carbon, which hurt adsorption performance. They installed thermal regeneration furnaces to fix it. This restored over 90% of the carbon’s adsorption capacity, extending its usable life significantly. It was a game-changer for their operation.
Xinhai Mining leads in advanced mineral processing tech, offering full ADE systems—from small pilot units to large industrial setups. We provide custom solutions that maximize gold recovery and meet environmental standards. For example, a recent project in South Africa boosted a mine’s yield by 15% using our tailored desorption units.
Reach out today for a personalized consultation to optimize your adsorption, desorption, and electrowinning cycle with top-notch engineering support! Let’s make your gold recovery process faster, cleaner, and more efficient.
