Steel Structure Concentrator: Short Construction Period, On-Budget, Easy to Implement

The traditional concrete construction model for mineral processing plants can no longer keep pace with the modern mining industry. Long construction periods, uncontrolled costs, and difficult implementation have become unavoidable obstacles. Xinhai Mining’s modular steel structure concentrator solution effectively solves these three core problems, helping customers achieve fast construction, cost savings, stable quality, and easy deployment for all mining site conditions.

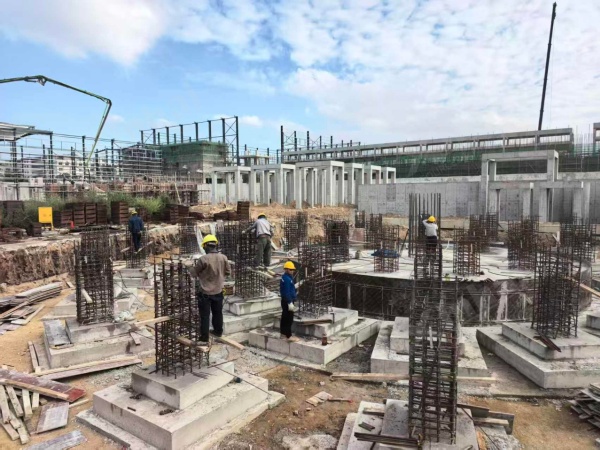

Three Major Problems of Traditional Concrete Concentrators

In the current mining industry, efficiency and cost control directly determine project profits. Traditional concrete concentrators have obvious drawbacks that reduce investment returns.

1. Unreliable Construction Schedule
Concrete construction is a wet operation restricted by weather. Work must stop in rainy or low-temperature conditions. In complex geological areas, foundation work alone takes months. The standard cycle is 12–18 months, and half-year delays are common, causing direct profit loss.

2. Uncontrolled Costs & Prone to Overruns
Heavy building materials lead to high transportation costs in remote areas. Labor expenses are also substantial. Budget overruns of over 30% are common. Later reconstruction is difficult and expensive, resulting in very low cost performance.

3. Difficult Implementation & Production Risks
Concrete construction depends heavily on manual skills with no unified standards. Transportation of large components is extremely difficult in mountainous or remote areas. After production, cracking and leakage often occur due to vibration and humidity, threatening safety and causing high maintenance costs.

Steel Structure Concentrator: Optimized Solution for Modern Mines

Steel structure concentrators meet modern mining needs in policy compliance, site adaptability, and working condition compatibility, becoming the preferred choice for new projects.

1. Compliant with Green Mining Policies
Steel has a recycling rate of over 90% with less dust and noise pollution. It fully meets Zero-Waste Mines and Green Mine standards, supporting smoother project approval.

2. Strong Adaptability to Complex Sites
Lightweight steel components require less foundation support and can be transported in separate units. Transportation difficulty and cost are reduced by nearly 50% for remote areas.

3. Durable in Special Working Conditions
Steel provides excellent seismic resistance and toughness. With professional anti-corrosion treatment, it performs better than concrete in humid and vibrating environments for long-term use.

Xinhai Modular Steel Structure: Four Core Advantages

Xinhai’s optimized modular solution delivers higher efficiency, controllable costs, and stable quality with four key strengths:

1. Low Construction Threshold, Weather-Independent
Core parts are factory-prefabricated and assembled on-site like building blocks. Construction is not affected by normal weather. The period is shortened by over 50%, generally completed in 3–6 months.

2. BIM 3D Design to Avoid Errors
Full-discipline BIM 3D modeling simulates layout and detects conflicts in advance with 98% resolution efficiency, eliminating rework and design changes.

3. Standard Modular Construction
Components are produced with precision within ±2 mm. Overall costs are reduced by 20%–30%. Capacity expansion and process upgrades are flexible by adding modules.

4. All-Bolt Connection for Easy Installation & Maintenance
Full bolted connections improve efficiency by 30%. Modules can be disassembled without damage, extending service life and reducing maintenance costs.

Xinhai Mining Steel Structure Concentrator Projects

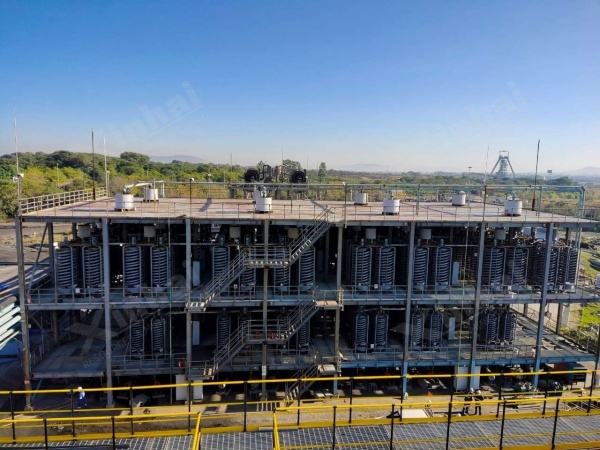

1. 3000 tpd Chromite Ore Flotation Concentrator in South Africa
The project is located in a remote mining area in South Africa with poor transportation, difficult material delivery, and harsh construction conditions. Using traditional concrete construction, material transportation and foundation work alone were estimated to take more than 8 months, far exceeding the expected schedule. Xinhai adopted a modular steel structure solution, dividing the concentrator into over 70 standardized modules. After prefabrication in Chinese factories, modules were delivered to the mine via sea-land combined transport. Full installation and commissioning were completed on-site in only 4 months for a smooth start-up.

BIM 3D design was used throughout the project to avoid pipeline and equipment conflicts in advance. All-bolt connections reduced construction difficulty, allowing local ordinary construction teams to complete assembly. After commissioning, the concentrator operated stably with a qualified chromite flotation recovery. The schedule was shortened by 8 months, and construction costs were reduced by 25% compared with the traditional model, winning high customer recognition.

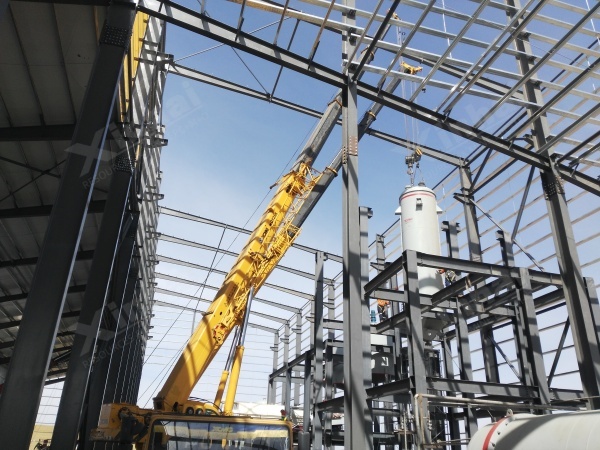

2. 1.2 Mtpa Complete Equipment Gold Concentrator in Mongolia
Mongolia has long, severe winters with extremely low temperatures, making traditional concrete wet work impossible and the effective construction period extremely short, so the schedule could not be guaranteed. The region also has permafrost geology, making concrete foundation work difficult and costly. Xinhai provided a customized modular steel structure concentrator. Core components received special anti-freeze and anti-corrosion treatment during factory prefabrication. Modular assembly is not restricted by low temperatures, adapting to the local harsh climate.

Xinhai’s Core Competitiveness

Xinhai provides full-industry-chain EPC services with One Mine, One Solution customization for copper, gold, chromite,  and other minerals. We use Q355B high-quality steel with Grade 2 structural safety and over 50 years of designed service life.

With experience in 2,000+ mines and 600+ EPC projects across 100+ countries, our solutions are widely recognized by global mining enterprises.

Whether for new construction or plant renovation, Xinhai’s modular steel structure solution helps you achieve earlier production and higher profitability. Contact us today for your customized plan.
