A self-developed high-efficiency deep cone thickener, the upper limit of underflow concentration can reach 70%. 【Processing capacity】: 60～2600m³/h 【Scope of application】: The high-efficiency deep-cone and multi-cone thickener is mainly used for the high concentration concentration of minerals in the concentrator, and can also be used for the concentration of other fine-grained and low-density slurries and wastewater treatment.
The height of the enrichment equipment is much larger than the diameter of the pool, and the whole is a vertical barrel cone;
The high-efficiency deep-cone thickener has a long and slender tank body, and flocculant is added during the concentration process, which accelerates the concentration process of material sedimentation and overflow water clarification;
The new design greatly improves the underflow concentration and the quality of overflow water;
Intelligent operation can be realized;
The processing capacity is 3-8 times higher than that of the traditional concentrator, the underflow concentration can reach 300-800 g/L, and the quality of the overflow water can meet the national discharge standard.

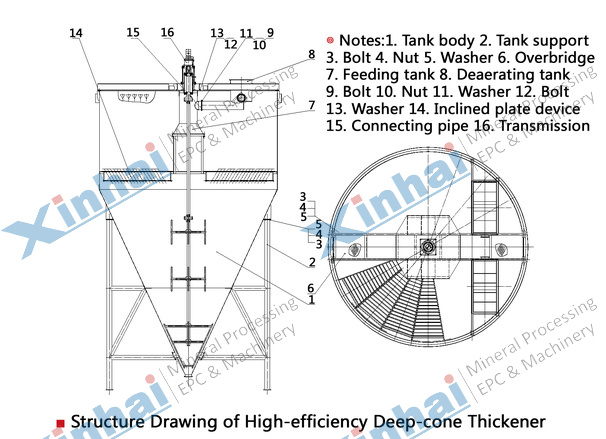

Deep cone thickener also called paste thickener is higher than other thickeners which consist of deep cone, feeding device, stirring device, control box, reagents adding device, automatic control system, etc.
Efficient deep cone thickener is mainly applied in the thickening of minerals or other fine materials.
| Motor | Tank Diameter(mm) | Tank depth (mm) | Sedimentation Area(m2) | Capacity (m3/h) |
|---|---|---|---|---|
| GSNG-3 | 3000 | 4404 | 21 | 60-70 |
| GSNG-6 | 6000 | 8810 | 85 | 210-260 |
| GSNG-9 | 9000 | 13500 | 310 | 570-700 |
| GSNG-12 | 12000 | 17500 | 510 | 800-1200 |
| GSNG-15 | 15000 | 19000 | 1200 | 1000-1500 |
| GSNG-18 | 18000 | 22000 | 2000 | 1400-2100 |
| GSNG-20 | 20000 | 22800 | 2700 | 2100-2600 |

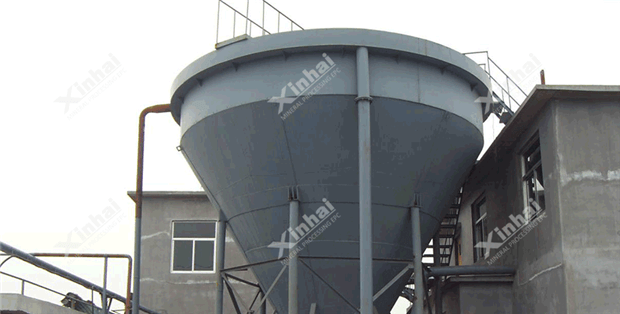

Due to the influence of the site area of a copper ore dressing plant, the equipment required is almost all products with a small footprint. In the concentration stage, the high-efficiency deep-cone thickener solves this problem better. The cone of the deep cone thickener has a small footprint and large processing capacity; the height of the pool is greater than the diameter of the pool, and the body of the pool is slender, which speeds up the processing speed. In addition, Xinhai's deep cone thickener has a higher degree of automation, saves more electricity, and has more obvious cost control.
