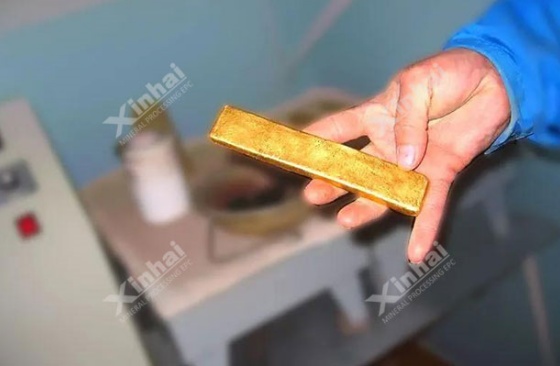

The gold elution process is a key step in pulling gold out of ore in methods like Carbon-in-Pulp (CIP), Carbon-in-Leach (CIL), and Carbon-in-Column (CIC). These methods use activated carbon to soak up gold from a cyanide solution. When the carbon gets full of gold, it’s moved to a gold elution plant to get the gold out. This process strips the gold off the carbon, so it can be turned into solid gold through other steps, like electrowinning and smelting. The elution plant wraps up the CIP/CIL/CIC cycle by removing gold from carbon, collecting it as sludge, and turning that sludge into doré bars—those shiny gold bars you see in pictures. It’s kind of amazing how a gritty piece of carbon ends up as something so valuable.
The gold elution process has a few main steps, each doing a specific job to get the gold out cleanly:
Desorption: A hot solution, usually with sodium hydroxide and a bit of cyanide, is used to pull gold off the loaded carbon. The heat makes the gold let go of the carbon.
Electrowinning: The gold-filled solution flows through cells where an electric current makes the gold settle out as a sludge.

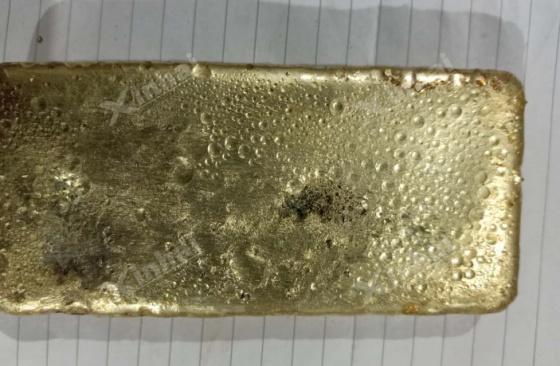

Drying and Smelting: The sludge is dried, heated to remove impurities, and melted into doré bars in a furnace.
Carbon Regeneration: The used carbon gets heated up in a kiln to clean it, so it can be reused in the process.
These steps work together like a well-oiled machine, turning gold-loaded carbon into something miners can sell.

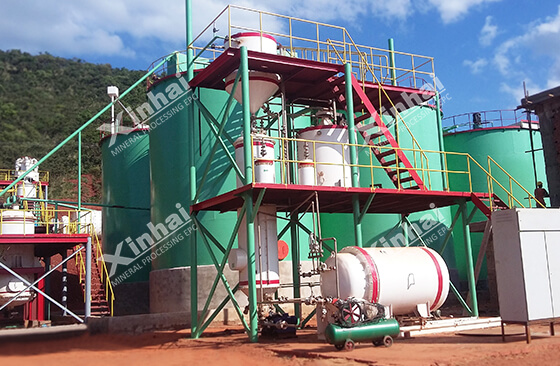

Gold elution plants come in different setups, depending on the tech used and the size of the operation.
Xinhai, for example, builds compact plants using either ZADRA or AARL tech. Their setup includes three screens to drain water from carbon, two columns with tanks to hold the solution, a heater skid to warm things up, an electrowinning circuit with tanks and filters, an oven for drying and calcining, and a smelting furnace with extra tools for the goldroom. I’ve read about mines in places like Australia using these systems to process thousands of tons of ore daily—it’s impressive how streamlined it all is.
Some systems focus on saving energy while still pulling out high-grade gold. For instance, when the solution has a lot of gold, it skips reverse electrolysis, making the process simpler and faster.
Building a gold elution plant takes some smart planning to make it work well without wasting money or energy. Here are the big things to think about:
Modular Design: Plants are often made from pre-built pieces, like Lego blocks. This cuts down on time and costs for designing, delivering, building, and starting the plant. A small mine in Nevada I heard about used a modular setup and was up and running in half the usual time.
Heat Recovery System: A good plant recycles heat to keep the solution hot without burning extra energy. It also dries carbon efficiently, so less energy gets wasted.

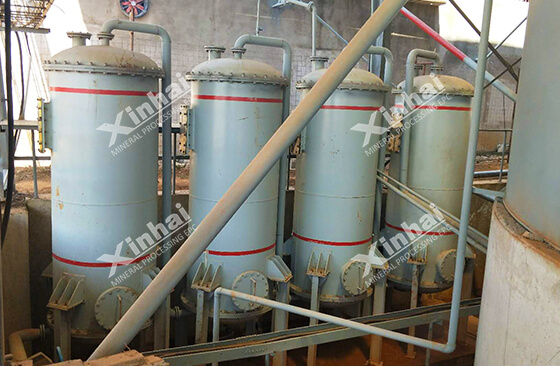

System Composition: The desorption electrolysis system has a bunch of parts: a desorption column, filter, electrolysis tank, circulation pump, electric heater, carbon injector, air compressor, desorption liquid tank, clean water pump, acid storage tank, magnetic pump, carbon storage tank, control panel, silicon rectifier cabinet, and acid washing tank. Each piece has to fit together just right to keep things running smoothly. Getting all these parts to work together saves energy and keeps the plant humming along.
To get the most gold out of an elution plant, miners need to stick to some tried-and-true habits:
Control the Heat: Keep the desorption solution at the right temperature. Too low, and the gold won’t come off the carbon; too high, and you might damage the equipment.
Watch the Pressure: Check the pressure in the columns to make sure the solution flows properly. If it’s off, gold could get stuck.
Clean the Carbon: Regenerate the carbon on time by heating it in a kiln. This keeps it ready to grab more gold.
Use Automation: Smart systems can watch tank levels, temperatures, and pressures, making adjustments automatically. This cuts down on mistakes and keeps the plant running without hiccups. For example, a mine in South Africa I read about uses automated controls to monitor their elution plant. They cut downtime by 20% just by letting the system handle temperature and flow. Automation is like having an extra set of eyes that never gets tired.
New tech is making gold elution plants better, safer, and greener. Here’s what’s new:
Automation Integration: Plants now come with four levels of automation. You can control them from a separate room or tie them into the mine’s main control system. This makes everything run more smoothly and cuts down on errors.
Enhanced Safety Features: Safety is a big deal. Modern plants have triple safety measures, like smart systems that spot problems, automatic pressure relief valves, and extra safety valves to prevent accidents. It’s reassuring to know miners are protected while working.
Energy Efficiency: New plants use bigger heat recovery circuits to keep the solution hot without using extra power. This shortens elution time and saves energy, which is good for both the wallet and the planet. These upgrades make plants more reliable and help mines do more with less.

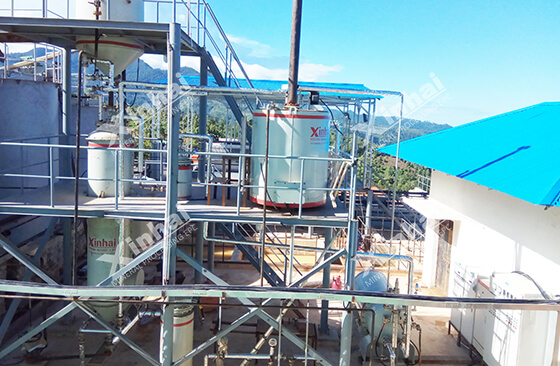

Every mine is different, so gold elution systems can be tailored to fit specific needs. Whether it’s a small operation or a huge one, the setup can match the mine’s size and the ore’s traits. For instance, a compact system might work for a 500 TPD mine in Ghana, while a bigger one suits a 10,000 TPD plant in Canada. The Efficient Low-Consumption Rapid Desorption Electrolysis System comes with details like model, applicable scale, mine scale, ore grade, basic equipment (like columns and pumps), instruments (like sensors for temperature), and operating parameters (like pressure settings). This flexibility lets miners pick what works best for their goals without spending too much. It’s like getting a custom-built car instead of a one-size-fits-all model.
A gold elution plant pulls solid gold off activated carbon after it’s soaked up gold during cyanide leaching. It’s used to turn gold-laden carbon into actual gold you can hold, like doré bars, in processes like CIP or CIL.
Heat speeds up the chemical reactions that strip gold from carbon. Higher temperatures make the process faster, but you’ve got to be careful. Too much heat can hurt the equipment or wear out the carbon. A plant in Chile I heard about keeps their solution at 140°C for ZADRA elution, hitting a sweet spot for efficiency without damage.
Running a gold elution plant isn’t always smooth sailing. Some issues include: - Keeping steady flow rates so the solution moves right. - Avoiding heat loss, which can slow things down. - Stopping buildup or clogs in the columns. - Making sure sensors and gauges are accurate. Automated systems, like those with liquid level and temperature controls, help tackle these problems by catching issues early.

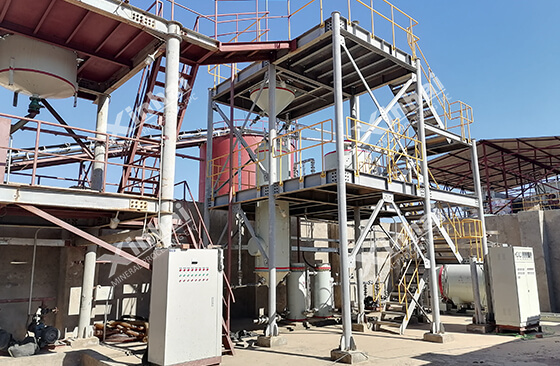

Yes, they can. Modular systems, like Metso’s compact designs, let small mines set up efficient elution plants without breaking the bank. A small mine in Tanzania I read about uses a modular ZADRA system to process 200 TPD, and it works like a charm for their budget.
Automation keeps things consistent by watching key factors like temperature and pressure. It cuts down on human mistakes, so the plant runs better. With standard automation, an operator can control the plant locally, boosting uptime and gold recovery. For example, a mine in Australia saw a 15% jump in efficiency after adding automated controls to their elution setup.
