Gold extraction is one of the most critical steps in modern mining, and selecting the right recovery process can directly impact both efficiency and profitability. Among the various hydrometallurgical methods, the Carbon-in-Pulp (CIP) and Carbon-in-Leach (CIL) processes are the two most widely applied techniques. Both rely on cyanidation combined with activated carbon adsorption, but they differ in sequence, equipment configuration, and operational outcomes. Understanding the principles, step-by-step workflows, and comparative advantages of CIP and CIL is essential for mining operations aiming to maximize gold recovery while minimizing costs and environmental impact.

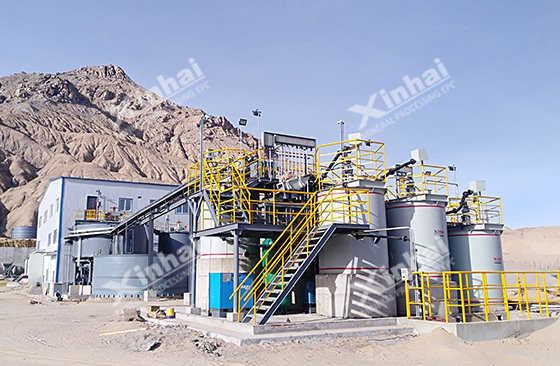

In simple terms, the CIP process starts with cyanidation leaching. After that, workers add activated carbon to the slurry to grab the gold. This approach splits the leaching and adsorption parts into two separate jobs. Each part can be fine-tuned on its own. During leaching, a cyanide mix dissolves gold from the ore. Then, in the next step, activated carbon catches the dissolved gold from the slurry.
The CIP method keeps leaching and adsorption as distinct tasks. Because of this, people can adjust the tank designs and conditions for each stage to work better. This split also changes how materials are moved and handled throughout the system. For example, at a mine in Australia, they use big tanks for leaching and smaller ones for adsorption, making everything run smoother.

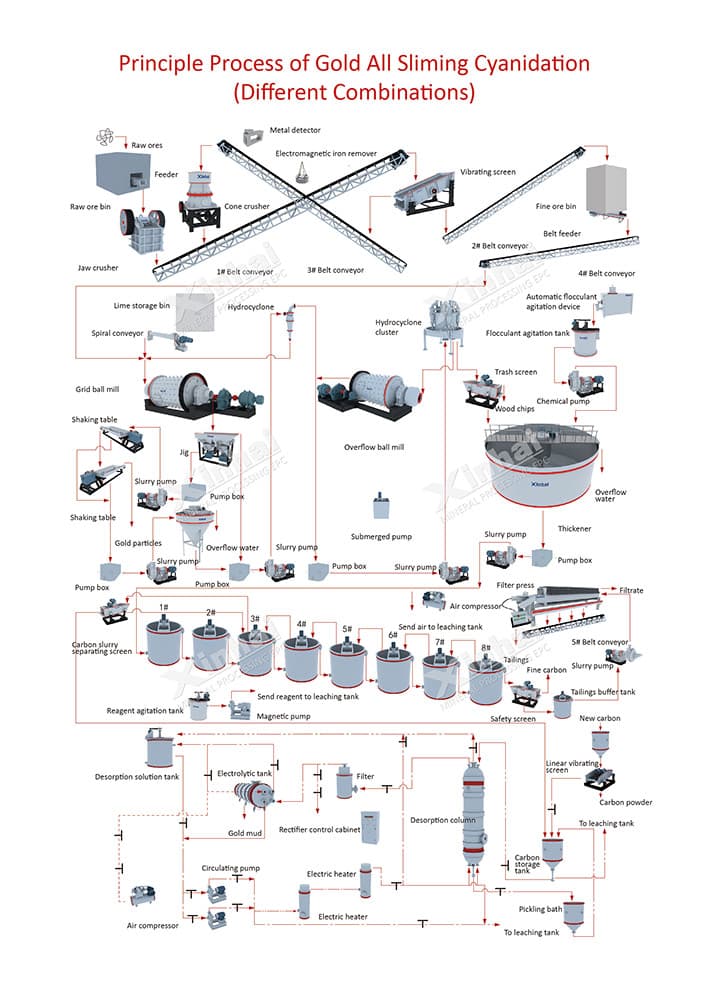

The CIP process uses active carbon to pull gold from cyaniding pulp. It has seven clear steps. Here’s how it goes:
Leaching Pulp Preparation – Workers crush ore and mix it with water to make a slurry. Imagine a big blender turning rocks into a wet mix!
Cyaniding Leaching – They add cyanide to melt the gold out of the ore. This step takes about 24 hours in a typical setup.
Carbon Adsorption – After leaching, activated carbon goes in to catch the gold. This happens in a series of tanks, one after another.
Gold Loaded Carbon Desorption – The gold is taken off the carbon. It’s like cleaning the carbon to get the gold out.
Pregnant Solution Electrodeposit – Gold is pulled from the solution using electricity. This step feels like magic, turning liquid into solid gold!
Carbon Acid Regeneration – The used carbon gets a good wash to be ready for another round. They do this with acid to clean it up.
Leaching Pulp Disposal – The leftover tailings are dealt with carefully. Some mines bury them, while others treat them to keep the environment safe.
This process is steady but takes time. I think it’s kind of cool how they reuse the carbon over and over!

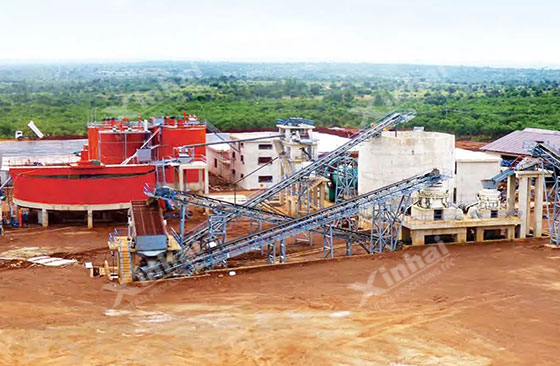

The CIL process is different. Here, activated carbon goes into the leaching tank right away. Both leaching and adsorption happen at the same time in one place. Unlike CIP, this method blends the two steps together in each tank.
In CIL, the leaching and adsorption jobs run side by side. This mix cuts down the time needed and might save money because fewer tanks are required. For instance, a mine in South Africa uses just six tanks for CIL, while a similar CIP setup might need ten. It’s a smart way to save space and cash.
The CIL method is a smart way to get gold from ore. It mixes cyaniding and carbon leaching at once. This lowers costs and boosts the recovery rate to 99%. Many modern mines pick CIL for these reasons.

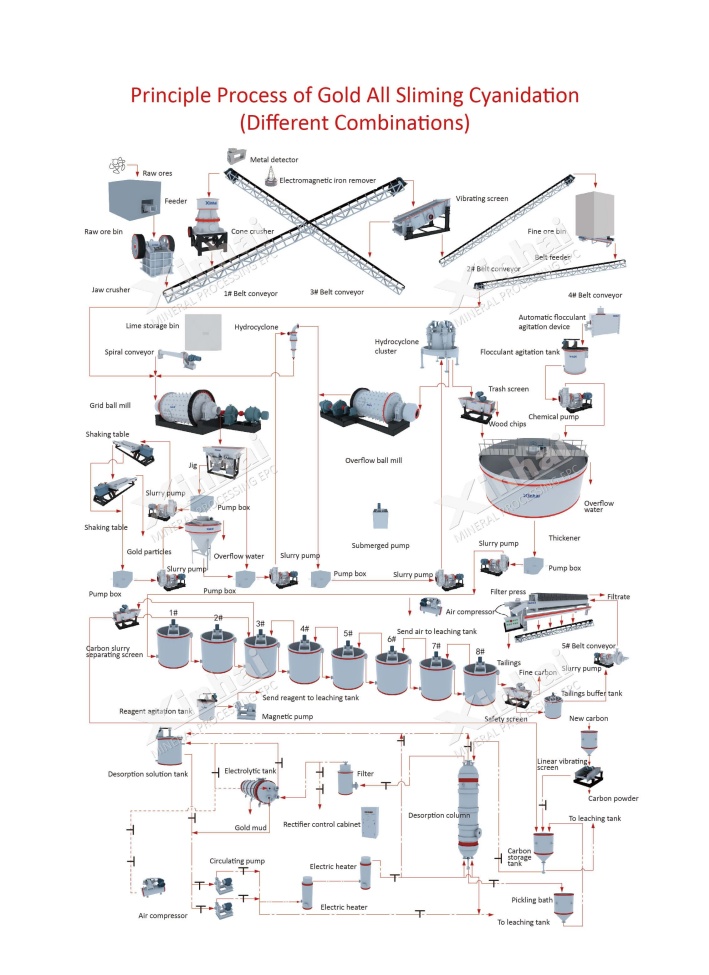

Ore Preparation & Slurry Formation – The ore gets crushed and mixed with water. It’s a messy but important start!
Simultaneous Cyanidation & Adsorption – Cyanide melts the gold while carbon grabs it in the same tank. This step saves a lot of time.
Carbon Screening & Separation – The loaded carbon is pulled out from the slurry. Workers use screens to do this neatly.
Desorption & Electrowinning – Gold is stripped from the carbon and turned into solid form with electricity. It’s a quick finish!
Carbon Regeneration – The used carbon is heated up to be reused. This step keeps things green.
Tailings Disposal – The leftover stuff is handled safely. Some mines even turn tailings into new land areas.
CIL feels faster and more efficient. The 99% recovery rate is pretty impressive, right?
| Characteristic | CIP (Carbon-in-Pulp) | CIL (Carbon-in-Leach) |
|---|---|---|
| Adsorption Timing | Adsorption occurs after leaching is completed | Leaching and adsorption occur simultaneously |
| Advantages | Simpler procedure, lower equipment investment | More suitable for ores containing natural adsorbents (e.g., organic carbon), reduces recovery losses |
| Process Complexity | Moderate | Relatively more complex, requires more precise control system |
Gold extraction uses CIP and CIL, which are alike but not the same. Let’s look at how they differ.
The CIP process takes longer than CIL. But CIL uses more carbon and has a lower carbon concentration. Also, CIL moves four times more slurry than CIP for the carbon part. For example, a mine moving 100 tons of slurry with CIP might handle 400 tons with CIL.
CIP has more metal leftovers, and where these leftovers sit varies between the two. In CIP, metals are mostly in the solution. In CIL, they stick to the activated carbon. This difference can affect how mines plan their work.
Independent Process Control – After leaching is done, adsorption can be adjusted based on its own needs. This gives workers more freedom to tweak things.
Lower Slurry Transport Volume – CIP moves less slurry, only a quarter of what CIL does. That saves energy and effort.
Suitable for High-Grade Ores – High-grade ores work well with CIP because the metal stays in solution before carbon grabs it. A mine in Canada swears by CIP for their rich ore deposits.
Shorter Processing Time – CIL finishes faster because it combines steps. A mine might save days compared to CIP.
Higher Recovery Rate – CIL gets up to 99% of the gold. That’s a big win for profit!
Lower Operational Costs – Using fewer tanks cuts down expenses. A small mine in Africa cut costs by 15% switching to CIL.
Several things affect whether a mine picks CIP or CIL:
Ore Characteristics – High-grade ores might do better with CIP because of how metal dissolves. Low-grade ores get a boost from CIL’s high recovery. A mine in Nevada tested both and stuck with CIP for their ore type.
Capital Investment – CIL needs fewer tanks, which helps if money is tight. A new project in Chile chose CIL to save on startup costs.
Processing Time Constraints – If a mine needs quick results, CIL is the way to go. A tight schedule in Peru pushed them toward CIL.
Carbon Management Strategy – In CIP, metals are spread in solution. In CIL, they pile up on carbon. This changes how mines manage their resources.
Deciding between CIL and CIP depends on your mine’s size, ore type, available money, recovery goals, environmental rules, and personal likes. It’s not a one-size-fits-all choice.
For expert help, Xinhai Mining offers top-notch EPC+M+O services. They’ve worked with nearly 2,000 mines worldwide since 1997. Over 500 projects are done, with two bases and 500+ staff across the globe. They handle everything from design to running the mine.
We’re excited to find the best fit for your mine! Their team loves solving tough problems and making things work.
Q1: What’s better for high-grade ores—CIP or CIL?
A: High-grade ores usually do well with CIP. It handles high concentrations nicely before adsorption. A mine in Australia saw great results with CIP on their rich ore.
Q2: Which method offers faster processing?
A: CIL is quicker because it mixes leaching and adsorption. A mine in South Africa cut their time by two days with CIL.
Q3: Is there a significant difference in equipment setup?
A: Yes—CIP uses separate tanks for each step. CIL combines them, saving money on gear. A small mine in Ghana liked the simpler CIL setup.
Q4: How does metal distribution differ between methods?
A: In CIP, metals are mostly in the solution. In CIL, they stick to the carbon. This changes how mines plan their day-to-day work.
Q5: How can I get help choosing between these methods?
A: Reach out to Xinhai Mining! They’ll give you personalized advice based on your mine’s needs. They’re super helpful from start to finish!
Q6:Which process, CIP or CIL, is more suitable for ores with high organic carbon content?
A:CIL (Carbon-in-Leach) is generally more suitable for ores with high organic carbon content. This is because the simultaneous leaching and adsorption in CIL helps mitigate the “preg-robbing” effect caused by natural carbonaceous materials. By adsorbing dissolved gold as it is leached, CIL reduces the risk of gold being re-adsorbed by the natural organic carbon in the ore.
Q7:How does carbon particle size affect adsorption efficiency in the CIP process?
A: In CIP, the particle size of activated carbon plays a key role in adsorption efficiency:
Smaller carbon particles provide a larger surface area, enhancing gold adsorption kinetics. However, they are more prone to attrition, loss during screening, and difficulties in recovery.
Larger carbon particles are mechanically stronger and easier to recover but have lower surface area, which can reduce adsorption efficiency.
Therefore, an optimal particle size range (typically 6–12 mesh, depending on the plant design) is chosen to balance adsorption efficiency, mechanical strength, and carbon recovery.
