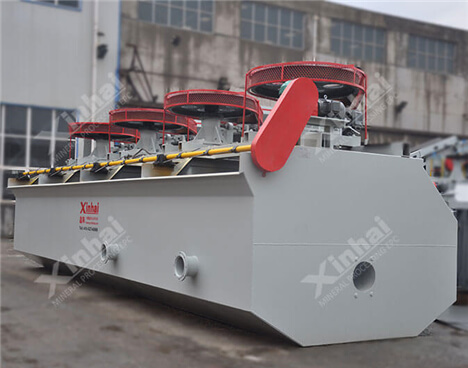

A self-priming inflatable mechanical stirring flotation machine equipment (as the suction tank of the KYF flotation machine). 【Processing capacity】: 0.2～38 m³/min 【Scope of application】: It can be widely used in the separation of non-ferrous metals, ferrous metals and non-metallic minerals, and is suitable for roughing and sweeping operations in large and medium-sized flotation plants.
Xinhai's flotation equipment has a simple structure and strong stirring capacity;
The air is dispersed evenly and the air slurry is well combined;
Less tailings deposition, low peripheral speed and low power consumption;
It can be combined with KYF flotation machine to form a combined flotation unit as a suction tank;
The structure and performance of the machine are similar to those of the KYF flotation machine. The difference is that there is a special stator above the impeller to form a special negative pressure area and self-priming pulp.
In the flotation process, the rational use of flotation reagents can more effectively sort out useful minerals and gangue minerals.

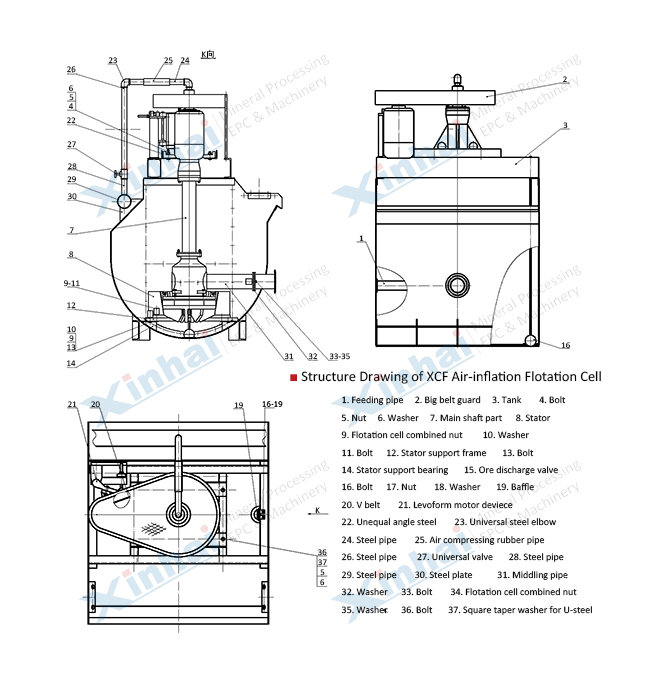

XCF air inflation flotation cell structure as shown in the diagram, is composed of tank, large isolation plate impeller with top and bottom blades, seat stator radial blade, split disc cover, split center tube, connecting tube with air-bleed hole, bearing body, hollow main shaft and the air adjustable valve.
Deep groove body with open and closed two structures; the bearing body with seat and hanging type XCF air inflation flotation cell is applied in roughing and scavenging of large and middle scale dressing plant aiming to non-ferrous metal, ferrous metal and nonmetal minerals.
| Model | Effective Volume (m3) | Capacity (m3/min) | Impeller Diameter (mm) | Impeller Revolution (r/min) | Air Pressure of Blower (kPa) | Max. Air Inflation Volume (m3/m2.min) | Motor Power for Agitation (kW) | Motor Power for Scraper (kW) | Weight (kg) |
| XCF-1 | 1 | 0.2 ~1 | 400 | 358 | ≥ 12.6 | 2 | 5.5 | 0.75 | 1154 |
| XCF-2 | 2 | 0.4 ~2 | 470 | 305 | ≥ 14.7 | 2 | 7.5 | 1.1 | 1659 |
| XCF-3 | 3 | 0.6 ~3 | 540 | 266 | ≥ 19.8 | 2 | 11 | 1.5 | 2259 |
| XCF-4 | 4 | 1.2 ~4 | 620 | 225 | ≥ 19.8 | 2 | 15 | 1.5 | 2669 |
| XCF-8 | 8 | 3.0 ~8 | 720 | 175 | ≥ 21.6 | 2 | 22 | 1.5 | 3868 |
| XCF-10 | 10 | 4~10 | 720 | 192 | ≥ 21.6 | 2 | 30 | 1.5 | 4800 |
| XCF-16 | 16 | 4~16 | 860 | 160 | ≥ 25.5 | 2 | 37 | 1.5 | 6520 |
| XCF-24 | 24 | 4~24 | 950 | 153 | ≥ 30.4 | 2 | 37 | 1.5 | 8000 |
| XCF-38 | 38 | 10 ~38 | 1050 | 136 | ≥ 34.3 | 2 | 55 | 1.5 | 11000 |
A flotation plant in Shandong is small in scale and has a limited budget. It is hoped that a flotation equipment with high cost performance can be purchased. Xinhai Group recommends XCF-type aerated agitated flotation machine for customers according to their specific conditions. The main advantages of this xcf type flotation machine are small footprint, simple structure and easy maintenance. Because the air is evenly dispersed, the degree of combination with the pulp is greatly improved, so that the materials in the pulp are evenly stirred, and the separation efficiency is increased by 30%. After being put into production, the expected purpose is fully achieved, the land area is saved, the maintenance cost is low, the cost is well controlled and the cost is reduced, and it has received high praise from customers.
