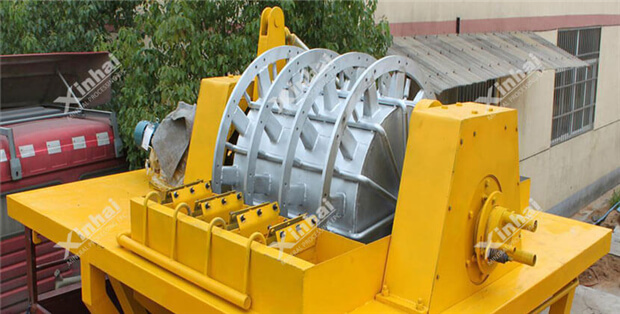

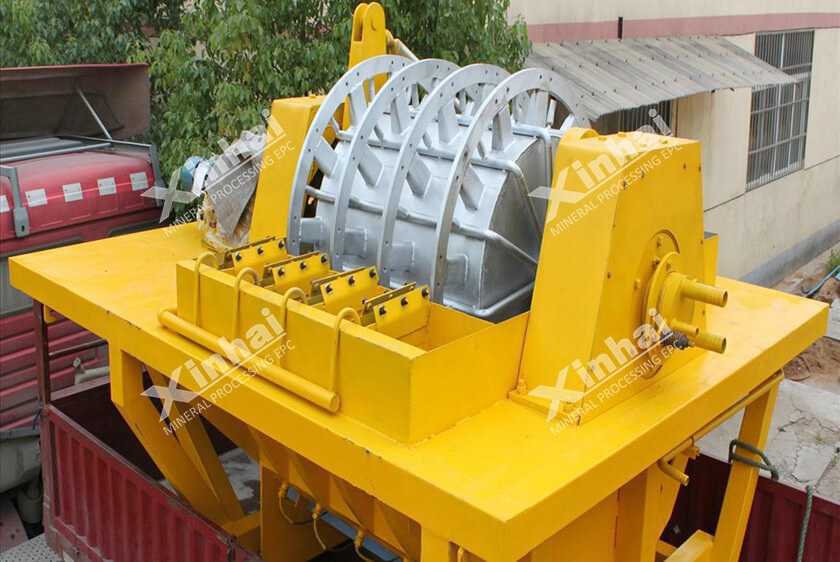

A vacuum filter with vertical discs composed of fan-shaped plates. 【Processing capacity】: 9～116m² 【Scope of application】: Disc filters are suitable for the treatment of fine concentrates containing sludge. It is mainly used to filter the dehydration of fine-grained materials such as flotation concentrate tailings and non-ferrous metal concentrates, and can also be used for solid-liquid separation in metallurgy, chemical industry, petroleum, sewage treatment, etc
The electromagnetic stepless speed regulation motor of the disc vacuum filter adopts cycloid pinwheel reducer and worm gear drive, which is easy to operate, improve efficiency, reduce noise and reduce energy consumption;
The fan-shaped plate is a lattice type made of engineering plastics, and the new type of fan-shaped plate greatly improves the performance and service life;
The technical and economic effects are remarkable;
Small footprint, easy manufacture, strong adsorption capacity, etc.
Filter plate immersed in the pulp while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with the vacuum pressure. The filtrate enters the distributing valve and drainage tank through the filter plate. Filter cake comes out from the slime hopper receiving spray washing. Filter cake falls into the tank by the pressure from the wind and scraper.
It can be used for floating and dewatering in clean coal and fine materials like tailings, and it can be also used in metallurgy, chemical, petroleum, sewage treatment, and other aspects of the solid-liquid separation.
| Model | PG18-4 | PG27-6 | PG39-4 | PG58-6 | PG78-8 | PG97-10 | PG116-12 | |
| Filter Area (m2) | 18 | 27 | 39 | 58 | 78 | 97 | 116 | |
| Quantity of Filter Disc | 4 | 6 | 4 | 6 | 8 | 10 | 12 | |
| Diameter of Filter Disc (mm) | 1800 | 1800 | 2700 | 2700 | 2700 | 2700 | 2700 | |
| Rotating Speed of Filter Disc (r/min) | 1 | 0.135 ~0.607 | 0.135 ~0.607 | 0.135 ~0.607 | 0.15~0.67 | 0.15~0.67 | 0.148~0.66 | 0.148~0.66 |
| 2 | 0.254~1.14 | 0.254~1.14 | 0.254~1.14 | 0.254~1.14 | 0.254~1.14 | 0.285~1.285 | 0.285~1.285 | |
| 3 | 0.44~1.98 | 0.44~1.98 | ||||||
| Rotating Speed of Agitator (r/min) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Main Drive Motor | Model | YCTL132-4B | YCTL132-4B | YCT160-4A | YCT160-4B | YCT160-4B | YCTL180-4A | YCTL180-4A |
| Power (kW) | 1.5 | 1.5 | 2.2 | 3 | 3 | 4 | 4 | |
| Rotating Speed (r/min) | 1230~125 | 1230~125 | 1250~125 | 1250~125 | 1250~125 | 1250~125 | 1250~125 | |
| Drive Motor of Agitator | Model | Y90L-4 | Y90L-4 | Y90L-4 | Y100L1-4 | Y100L1-4 | Y112M-4 | Y112M-4 |
| Power (kW) | 1.1 | 1.1 | 1.5 | 2.2 | 2.2 | 4 | 4 | |
| Rotating Speed (r/min) | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | |
| Vacuum Pump | Model | SZ-4 | 2YK-27 | SZ-4 | SZ-4 | SZ-4 | 2YK-110 | 2YK-110 |
| Quantity | 1 | 1 | 1 | 2 | 2 | 1 | 1 | |
| Blower | Model | SZ-2 | SZ-2 | SZ-2 | SZ-3 | SZ-3 | SZ-3 | SZ-3 |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Weight (kg) | 3500 | 4500 | 6000 | 8000 | 9000 | 10000 | 12000 | |
| Overall Dimensions: (LXWX H) (mm) | 2820X2355 X2295 | 3820X2355 X2295 | 3015X3275 X3275 | 3930X3355 X3275 | 4730X3355 X3275 | 5530X3355 X3275 | 6330X3355 X3275 | |
The filter selected by a ore dressing plant in Sudan has high filtration moisture, low cake removal rate, high energy consumption, and poor filtering effect. In response to the customer's problem, polypropylene plastic plate was specially added inside to increase the corrosion resistance. The indicators increased by an average of 17.21% compared with the previous filter, and the customer was very satisfied.
