A dewatering device that uses the pressure of the slurry pump to make the liquid pass through the filter cloth. 【Processing capacity】: 20~1000m² 【Scope of application】: It is widely used in solid-liquid separation operations and sewage treatment in mining, chemical industry, metallurgy, and various industries.

Advantages

Where the plant needs a stackable, transportable dry cake, the filter press is the standard answer. Xinhai builds it in two families, and the choice between them follows the material.

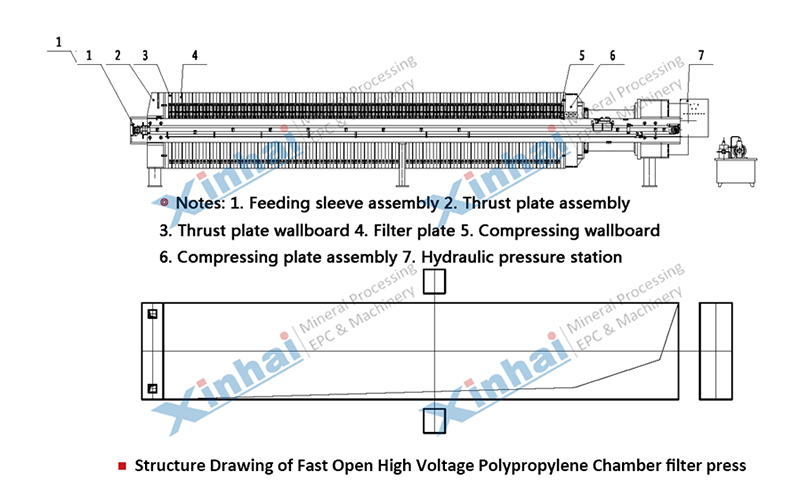

Working Principle


Filter cloth laid over each plate becomes the sealing medium when the plates clamp. In a chamber press, the recessed plates face each other and the cavity between two plates is the filter room: slurry enters through the central feed hole, feeding pressure drives filtrate through the cloth, and solids build up as cake inside the chamber until the cycle ends and the plates open.

In a plate-and-frame press, alternating plates and frames form the rooms; filtrate crosses the cloth-fiber medium to the drainage surface and the cake fills the frame. Both families discharge filtrate by open channel or under channel, selected against the plant layout and how the filtrate is collected.

Technical Parameters

ModelFilter Area
(m2)
Number of Filter
 Chamber
Spec. of Membrane Filter
Plate (mm)
Filter Cake Thickness
(mm)
Volume of Filter
Chamber (m3)
Filter
Pressure
(Mpa)
Overall Dimension
(mm)
Motor
Capacity
(kW)
Weight
 (kg)
XM/AZ 20/800U2020800×800×60300.2870.5~1.63500×1350×11602.22750
XM/AZ 30/800U30300.4534110×1350×11603130
XM/AZ 40/800U40400.6054720×1350×11603420
XM/AZ 50/800U50500.7565330×1350×11603700
XM/AZ 60/800U60600.9075940×1350×11604110
XM/AZ 70/800U70701.0596550×1350×11604400
XM/AZ 80/800U80801.217160×1350×11604740
XM/AZ 40/900U4032900×900×60300.590.5~1.64230×1480×12802.24500
XM/AZ 50/900U50400.754720×1480×12804800
XM/AZ 60/900U60470.885150×1480×12805100
XM/AZ 70/900U70631.196120×1480×12805700
XM/AZ 60/1000U60381000×1000×60300.90.5~1.65450×1560×13602.27080
XM/AZ 80/1000U80501.196180×1560×13607830
XM/AZ 100/1000U100621.486910×1560×13608680
XM/AZ 120/1000U120751.87710×1560×13609250
XM/AZ 125/1250U120461250×1250×65321.90.5~1.66500×1770×1620410900
XM/AZ 150/1250U150582.417290×1770×162011800
XM/AZ 180/1250U180692.888020×1770×162012700
XM/AZ 200/1250U200773.228550×1770×162013300
XM/AZ 220/1250U220843.519010×1770×162013900
XM/AZ 250/1250U250953.989740×1770×162014800
XM/AZ 300/1500U300771500×1500×70324.760.5~1.610040×2400×18005.526500
XM/AZ 320/1500U320835.1410460×2400×180027190
XM/AZ 340/1500U340885.4510820×2400×180027880
XM/AZ 350/1500U350905.5810960×2400×180028230
XM/AZ 380/1500U380986.0811530×2400×180029260
XM/AZ 400/1500U4001036.3911880×2400×180029950
XM/AZ 450/1500U4501167.2112810×2400×180031670
XM/AZ 500/1500U5001287.9613660×2400×180033390
XM/AZ 560/2000U560802000×2000×834011.160.5~1.610600×2900×24501156500
XM/AZ 600/2000U6008612.0112110×2900×245058000
XM/AZ 630/2000U6309012.5812440×2900×245059000
XM/AZ 670/2000U6709613.4312950×2900×245060500
XM/AZ 710/2000U71010114.1313370×2900×245062000
XM/AZ 750/2000U75010714.9813870×2900×245063300
XM/AZ 800/2000U80011415.9714460×2900×245065200
XM/AZ 850/2000U85012116.9615050×2900×245067000
XM/AZ 900/2000U90012817.9515640×2900×245069000
XM/AZ 950/2000U95013518.9416220×2900×245070600
XM/AZ 1000/2000U100014219.9216810×2900×245072300
XM/AZ 1060/2000U106015121.217570×2900×245074500
XM/AZ 1120/2000U112015922.3318240×2900×245076800
XM/AZ 1180/2000U118016823.6119000×2900×245079000


Success Cases


Zimbabwe 700d/t gold beneficiation project

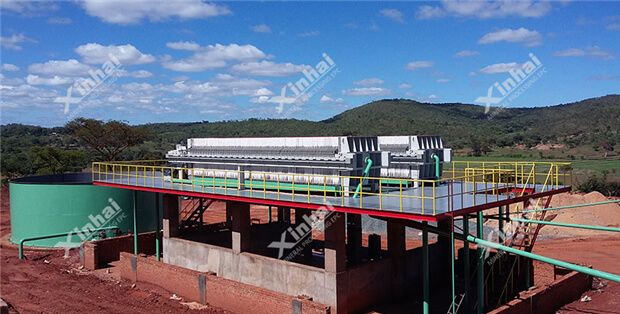

For the production drainage system of the 700d/t gold concentrator in Zimbabwe, Xinhai uses two parts of the box filter press and the concentrator to complete the drainage operation. It is used to realize the non-discharge of sewage for the dressing plant.
