In the context of the glass industry's purity requirements exceeding 99.99%, quartz sand magnetic separation technology is undergoing revolutionary innovations. Based on data from 32 global EPCM projects, this article analyzes how intelligent magnetic separation systems can achieve a 40% reduction in processing costs per ton and a 99.8% removal rate of impurities, setting new industry standards.
1.Intelligent Magnetic Field Control System:
Dynamic Adjustment Range: 0.1-2.5T (Tesla).
Gradient Precision: ±0.01T.
Automatic Compensation Technology for Separation Band Width.
Experimental data show that this system increases the capture rate of weakly magnetic hematite (<5μm) to 97%, a 35% improvement over traditional equipment.

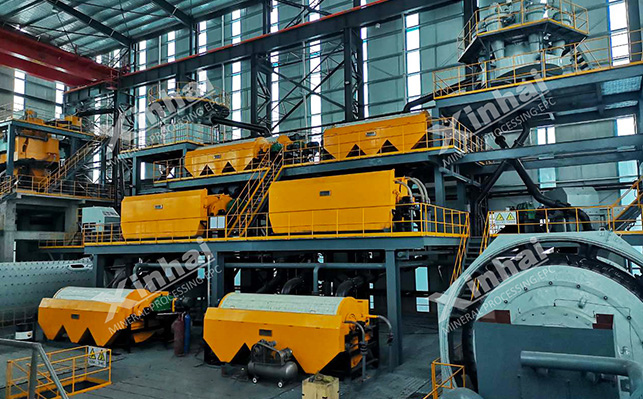

2.Modular Equipment Matrix:
Configured based on processing capacity:
Equipment Type | Processing Capacity (t/h) | Applicable Scenario | Energy Consumption (kWh/t) |
---|---|---|---|
Roller Dry Separator | 5-20 | Coarse particle pre-selection | 0.8-1.2 |
High Gradient Ring Machine | 10-50 | Fine particle selection | 1.5-2.0 |
Superconducting Magnetic System | 30-100 | Micron-level deep purification | 3.5-4.5 |
1.Multi-Level Cooperative Purification System:
Typical configuration:
Pre-selection Stage: Permanent magnetic drum (1.2T) removes strongly magnetic materials.
Rough Selection Stage: Electromagnetic ring (1.8T) handles 0.5-3mm particles.
Fine Selection Stage: Pulsating high gradient (2.3T) handles -0.5mm fine particles.
Scavenging Stage: Superconducting magnetic system (2.5T) captures nano-level impurities.
A Malaysian solar sand project applying this model achieved:
Reduced Fe2O3 content from 0.025% to 0.0012%.
Decreased water consumption per ton from 3.2m³ to 0.7m³.
Reduced magnetic medium loss by 60%.
2.Digital Optimization Platform:
Achieves real-time data collection and control through RTCS:
Dynamic Control of Slurry Concentration (±0.5% accuracy).
Online Monitoring of Particle Size Distribution (laser diffraction technology).
Self-Adaptive Matching Algorithm for Magnetic Field and Feed Quantity.
1.Closed-Loop Water Treatment System:
Integrates three core technologies:
Magnetic Flocculation: Achieves SS removal rate of 99.5%.
Ceramic Membrane Filtration: Retention rate >99.9%.
High-Frequency Electromagnetic Sterilization: Replaces chemical reagents.
2.Tailings Valorization Path:
Innovatively proposes "three-level utilization of magnetic separation tailings":
Fe >15%: Produces iron concentrate (TFe≥65%).
Al >20%: Manufactures refractory material aggregates.
Silica Content: Transforms into artificial sand building materials.
Indicator | Traditional Process | Intelligent Magnetic Separation System | Improvement |
---|---|---|---|
Installed Power (kW) | 1850 | 1260 | -32% |
Labor Cost ($/t) | 2.8 | 1.2 | -57% |
Purity Compliance Rate | 83% | 98% | +15% |
Commissioning Period (months) | 6.5 | 3.2 | -51% |
In conclusion, intelligent magnetic separation technology has become a core driver for industry upgrades in the context of a 17% annual increase in demand for semiconductor-grade quartz sand. Our company provides customized services from laboratory testing to full-plant delivery.
