The ways to split iron ore matter a lot. They help make the ore better. They cut down on energy use later. They also lower costs. The best way depends on a few things. These include what minerals are in the ore. For example, magnetite or hematite. It also looks at how big the bits are. Plus, what the waste rock is like. And rules about the environment or the factory setup.
Gravity splitting uses weight differences. Heavy iron bits sink fast. Light waste floats or stays up. This happens in water or with shakes. It works great for big chunks. And for thick iron parts often seen in mines.
Take a real mine in Australia. They dig coarse hematite. Bigger than 5 mm. Gravity pulls the good stuff down quick. In just minutes, you see layers form. The bottom is rich iron. Top is junk rock. Simple, right?

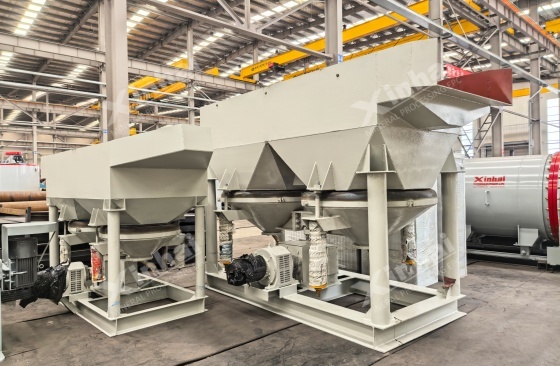

Jigging tools handle big iron lumps. They push water up and down. This makes layers by weight. Perfect for the first clean-up step. In Brazil, one plant uses jigs on 10-50 mm ore. They get 60% iron in one pass. Not bad for old-school gear.
Water pulses. Ore dances. Heavy drops. Light rises. Workers watch the flow. Adjust speed. Keeps things smooth.

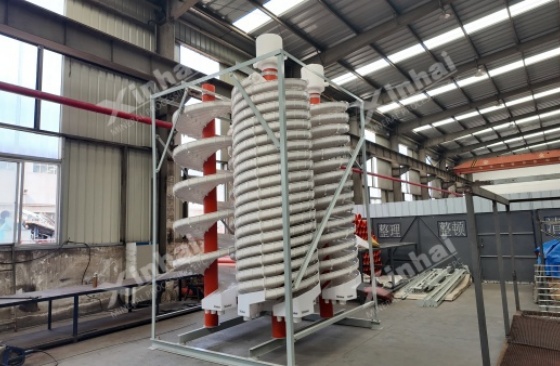

Spiral slides mix spin and water. Fine iron slides one way. Waste another. They run non-stop. Easy to fix. A South African site processes 1 mm bits. Spirals give steady output. No fancy controls needed.
Picture a playground slide. But wet. Ore spins down. Good stuff hugs the inside. Junk flies out. Clean and quiet.

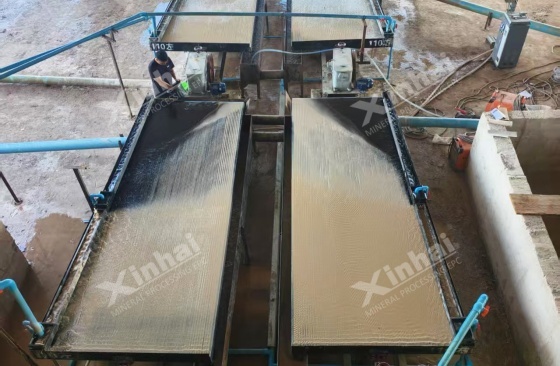

Shaking beds give sharp splits. For medium or small bits. Table rocks side to side. Water washes. Density rules. In China, tables polish 0.5 mm hematite. Final grade hits 62%. Worth the extra care.
Table tilts a bit. Water flows. Ore spreads. Heavy stays low. Light climbs up. Skim the top. Done.
Gravity ways cost little to run. They sip power. But ultra-tiny bits? Not their friend. Complex mixes need more tricks. Still, for rough work, they shine. I like how they need no chemicals. Feels cleaner.
Gravity separation and strong magnetic separation are mainly used to separate coarse grain (20 ~ 2mm) and medium grain hematite ore. Plants pair them often. Quick first cut. Then finer steps.

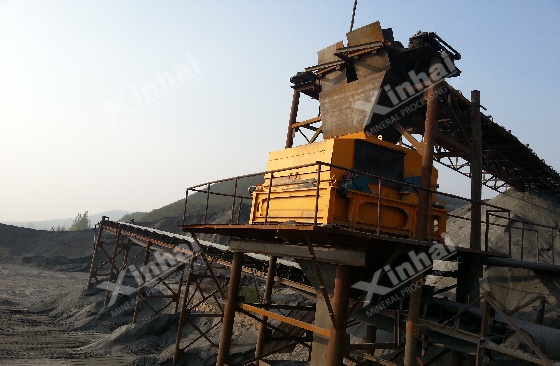

Magnetic pulling grabs iron that sticks to magnets. Mostly magnetite. A field turns on. Iron jumps. Waste stays put. Fast and picky for magnetic stuff.
Think of a huge magnet at a scrap yard. Cars fly up. Same idea, but tiny ore bits. In Sweden, they pull magnetite from sand. Clean concentrate in seconds.
Low Intensity Magnetic Separators (LIMS)
LIMS suit strong magnets like magnetite. Weak field does the job. Crushed ore feeds in. High-grade stuff comes out. A Canadian mine runs LIMS on 100 micron bits. Recovery tops 95%. Solid numbers.
Drum spins. Field low. Magnetite sticks. Scrapes off. Easy clean. Workers love the uptime.
High Intensity Magnetic Separators (HIMS)
HIMS crank power up. Grab weak magnets. Hematite. Siderite. Tougher ores. Field strong. Pulls hidden iron. Indian plants use HIMS on mixed feeds. Grade jumps 10 points.
Coils hum. Power high. Weak iron wakes up. Sticks firm. Gangue falls free.
Wet vs. Dry Magnetic Separation Systems
Wet setups mix ore in water. Slurry flows. Magnets grab better. Finer bits shine. Dry ones save water. Good for deserts. Or big chunks. A plant in Chile picks dry for dusty 5 mm ore. Cuts water bill in half.
Wet feels slippery. Particles dance free. Dry is dusty. Cough a bit. But works where rivers hide.
Magnetic ways push tons per hour. Super picky for magnetite. But non-magnetic hematite? They shrug. Complex locks need extra keys. Still, for pure magnetite pits, nothing beats the speed.
The beneficiation method of this type of ore is the most complicated in iron ore. Generally, the combined process of weak magnetic separation and other beneficiation methods is used, that is, weak magnetic separation is used to recover magnetite; gravity separation, flotation or strong magnetic separation is used to recover weak magnetic hematite (siderite) ore; flotation is used to recover associated components. Factories mix and match. Get the best from each.

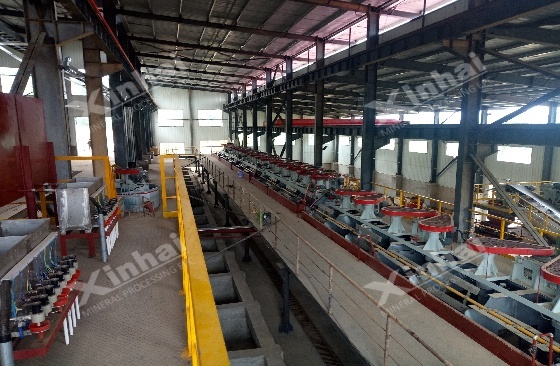

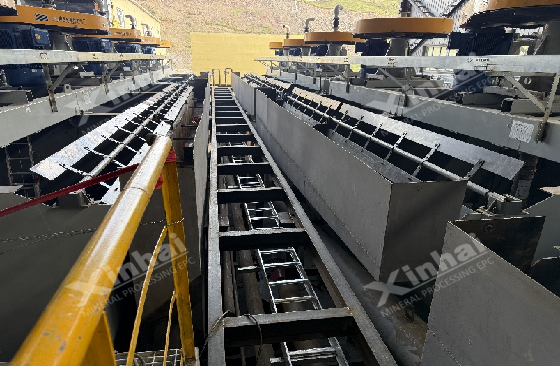

Flotation makes iron hate water. Add soap-like stuff. Air bubbles stick. Iron rides up. Froth skimmed. Concentrate ready. Magic for tiny bits.
Imagine blowing bubbles in milk. Cream rises. Same trick. But with chemicals and ore slurry. Bubbles pop. Iron stays. Cool to watch.
Collectors, Frothers, and Depressants
Collectors make iron slippery. Frothers hold bubbles. Depressants keep junk down. Pick right mix. Dose spot on. A U.S. lab tests 50 recipes. Finds one that lifts 90% hematite. Trial and error pays.
Chemicals swirl. Bubbles grow. Iron clings. Waste sinks. Adjust pH. Watch foam. Tweak again.
Flotation loves powder-fine hematite. Or goethite. Gravity skips. Magnets yawn. Flotation hugs tight. Russian mills float 10 micron grains. Grade soars to 68%.
Tiny bits float easy. No weight to sink. Bubbles lift gentle. Perfect match.
Flotation is one of the common methods for separating fine-grained to particulate hematite ore. It is divided into positive flotation and reverse flotation, and both have practical experience in production. Positive grabs iron. Reverse drops waste. Both work in real mills.
Flotation builds pure loads. Tune chemicals right. But it drinks reagents. Tailings need big ponds. Clean water loops help. Still, for fine mess, worth the fuss. I think the froth looks pretty, almost like cappuccino.
In addition, there is also a series process of roasting magnetic separation and other beneficiation methods, that is, roasting and magnetic separation concentrates are beneficiated by flotation or gravity separation to further improve the concentrate grade. Heat first. Magnet second. Float last. Grade climbs higher.
Electrostatic zaps use spark differences. Some minerals conduct. Others block. Electric field pushes. Good iron moves one way. Bad rock another. Dry trick mostly.
Remember static hair on a balloon? Minerals act same. Charge up. Conductors jump. Insulators sit. Neat science.
High Tension Roll Separators
High tension rolls spin under volts. Conductive iron leaps. Non-conductive waste drops. Dry zones love them. An African beach mine splits ilmenite this way. Saves water. Gets 99% pure streams.
Roll turns. Sparks fly. Iron arcs off. Waste falls straight. Brush cleans. Ready again.
Electrostatic steps in when others flop. Weird mixes. No water. But wet ore? Slippery mess. Fine dust? Clogs fast. Pick dry, coarse feeds. Works like a charm then.
Desert plants cheer. No pipes. No pumps. Just power. But rain? Shut down quick.
Sensor sorters scan fast. X-ray sees inside. Laser spots shape. Infrared reads heat. Belt rolls. Good bits fly left. Junk right. Real time picks. A German tech firm sorts 100 tons per hour. Waste drops 30%. Smart eyes beat old hands.
Conveyor hums. Sensors blink. Valve puffs air. Rock flips. Sorted clean. Future feels here.
Combined Gravity-Magnetic-Flotation Circuits
In recent years, combined processes with both parallel and series combinations have been widely used. For example, the lean hematite ore in a certain area adopts the combined process of gravity separation, magnetic separation and flotation to obtain a high index of iron ore concentrate of 65% to 67%. One Chinese pit runs all three. Starts with jigs. Then magnets. Ends with bubbles. Final iron hits 66%. Customers smile.
Steps link tight. Output flows smooth. No bottle necks. Team tweaks daily.
Benefits of Hybrid Approaches
Hybrid paths bend with ore changes. Grab more iron. Waste less. Green points rise. Water loops. Tailings shrink. Plants last longer. Money saved. Everyone wins.
Magnetite-hematite ore with embedded fine particles is difficult to obtain good results with general beneficiation methods and methods such as selective flocculation desliming, flocculation flotation, flocculation strong magnetic separation and flocculation gravity separation should be used. Glue fines first. Then split. Tricky but effective.
When picking the best iron ore separation method, weigh costs, environment, and upkeep. Gravity uses cheap gear like jigs but gives lower purity, while flotation demands pricey chemicals yet yields top-grade concentrate—small mines stick to simple setups, big ones mix full circuits.
Wet methods guzzle water and chemicals, piling up tailings; dry magnets sip least, gravity sits in the middle, and smart recycling shrinks waste. Simple jigs scale easy and last forever, but fancy sensors need skilled crews to handle new ores. Most pits blend single and combined methods for the best grades.
