Chromite mining and processing form the backbone of global chromium supply chains, enabling the production of corrosion-resistant stainless steels (accounting for 80% of chromium consumption), superalloys, and refractory materials. This article provides an in-depth examination of extraction methodologies, advanced processing technologies, and ESG (Environmental, Social, Governance) frameworks governing modern chromite operations, with particular focus on innovations in South Africa's Bushveld Complex and Kazakhstan's Kempirsai Massif.
Chromite mineralization occurs predominantly in stratiform deposits within ultramafic layered intrusions and podiform deposits in ophiolite sequences. Commercial viability requires minimum Cr₂O₃ grades of 40-45%, with chrome-to-iron ratios >2:1.
1. Overburden Removal: 200-400-ton hydraulic shovels and 240-ton haul trucks strip overburden at 10:1 stripping ratios in shallow deposits (<50m depth).
2. Selective Mining: GPS-guided dozers implement bench mining (12m height) to minimize ore dilution.
3. Fragmentation Control: Pre-split blasting with ammonium nitrate-fuel oil (ANFO) achieves optimal fragmentation (P80 of 500mm).
Trackless Mechanization: 60kW LHD (Load-Haul-Dump) units extract ore from sub-level open stoping configurations.
Ground Support: Fiber-reinforced shotcrete and Swellex bolts stabilize tunnels in seismically active zones.
Ventilation: 150 m³/s axial flow fans maintain <0.1% methane levels in deep mines (>1km depth).
Post-extraction, XRF analyzers conduct real-time Cr₂O₃ quantification, with automated sorting rejecting <38% Cr₂O₃ material prior to processing.
Modern processing plants integrate multi-stage beneficiation circuits to achieve 95% chromium recoveries:
Chromite beneficiation enhances Cr₂O₃ content through impurity removal using ore-specific techniques:
Gravity Separation: Spiral chutes or shaking tables exploit chromite's high density (4.5-5.1 g/cm³), segregating particles via gravity/centrifugal forces.
Magnetic Separation: Drum/HIMS separators isolate ferrous-rich chromite (0.1-1.2T magnetic intensity) from non-magnetic gangue.

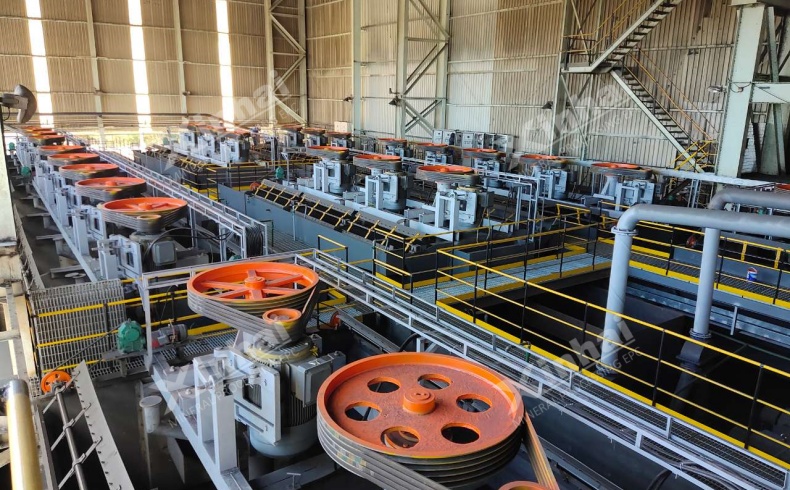

Froth Flotation: Anionic collectors (e.g., oleic acid) render chromite hydrophobic for air-bubble attachment, achieving 85-92% silica rejection in low-grade ores.
| Process | Parameters | Output Specification |
|---|---|---|
| DC Arc Smelting | 1600°C, 80MW furnaces | FeCr 60-70% Cr, <6% C |
| Alkaline Roasting | 1100°C with Na₂CO₃ | Na₂CrO₄ (98% purity) |
| Solvent Extraction | Tri-butyl phosphate in H₂SO₄ medium | 99.99% Cr₂O₃ for pigments |
The International Chromium Development Association (ICDA) mandates:
Environmental Management
Dry Stack Tailings: Filter-pressed tailings at 18% moisture content eliminate dam failure risks.
SO₂ Abatement: Calcium carbonate scrubbers achieve 95% emission reduction in roasting plants.
Biodiversity Offsets: 3:1 rehabilitation ratios in South Africa's Critical Biodiversity Areas.
Conclusion: Technological Convergence in Chromite Production
Contemporary chromite mining and processing synergize automated mining systems (e.g., XinhaiMining's Smart Min), circular hydrometallurgy (85% water recycling), and blockchain-enabled supply chain tracking. Through adoption of carbothermic reduction optimization models and AI-driven mineralogical scanners, the industry progresses toward zero-waste chromium production – a critical enabler for green technologies from hydrogen fuel cells to advanced battery chemistries.
