A shaker equipment that utilizes the asymmetrical reciprocating motion of the bed surface to separate light and heavy minerals. 【Processing capacity】: 0.1～1.8 t/h 【Scope of application】: The 6s shaker equipment can be used for different operations such as roughing, selection, and sweeping, and selects different grades such as coarse sand (2-0.5mm), fine sand (0.5-0.074mm), and ore slime (-0.074). When dealing with tungsten, tin and other ores, the effective recovery particle size range of the 6s shaker is 2-0.22 mm, and it can also be used to separate iron and manganese ores.
The horizontal slope adjustment range of the shaker is large (0-10°), and the stroke is easy to adjust;
The bed surface is flat, with good corrosion resistance, strong and durable, not easy to be deformed, and easy to repair locally;
When changing the lateral slope and stroke, it can also keep the shaking table running smoothly;
The spring is placed in the chassis, and the structure is compact;
The bed head mechanism operates reliably, with few easily worn parts and no oil leakage;
The shaker is reasonably priced, consumes no potions, and consumes very little electricity.
The working principle of gold concentrating table (shaking table) is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
| Model | XS 7.6 | XS 4.08 | XS 1.95 | XS 0.5 | |||
| Bed Surface Type | Coarse Sand Bed Surface | Fine Sand Bed Surface | Slurry Bed Surface | 3 Kinds Of Bed Surfaces Selectable | |||
| Beneficiation Area of Bed Surface (m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | |
| Bed Surface Dimension | Length (mm) | 4500 | 4500 | 4500 | 3000 | 2100 | 1100 |
| Width of Driving End (mm) | 1850 | 1850 | 1850 | 1320 | 1050 | 500 | |
| Width of Concentration End (mm) | 1550 | 1550 | 1550 | 1100 | 850 | 430 | |
| Max. Feed Size (mm) | 2 | 0.5 | 0.074 | Ore Sand -2 Slurry -0.1 | Ore Sand-2 Slurry -0.074 | Ore Sand -2 Slurry -0.074 | |
| Capacity (t/h) | 1 ~1.8 | 0.5 ~1 | 0.3~0.5 | 0.4~1.5 | 0.3~0.8 | 0.05~0.2 | |
| Feed Density (%) | 20 ~30 | 18 ~25 | 15 ~20 | 10 ~30 | |||
| Stroke (mm) | 16 ~22 | 11 ~16 | 8~16 | 6~30 | 12 ~28 | 9~17 | |
| Jig Frequency (r/min) | 220 | 250 | 280 | 210~320 | 250~450 | 280~460 | |
| Water Consumption (t/h) | 0.7 ~1 | 0.4 ~0.7 | 0.4 ~0.7 | 0.3~1.5 | 0.2 ~1 | 0.1~0.5 | |
| Notch Groove Section Shape | Rectangle | Sawtooth Wave | Triangle | Rectangle, Sawtooth Wave and Triangle Selectable | |||
| Motor Power (kW) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 0.55 | |

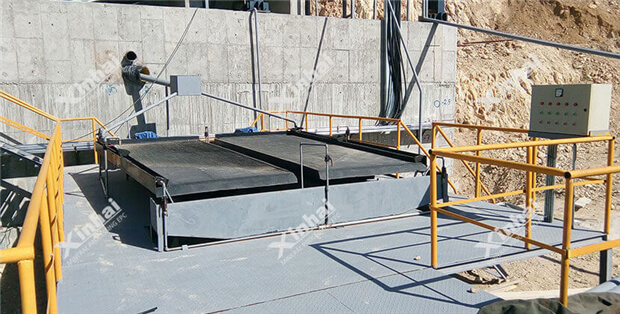

In 2003, a gold concentrator in Shandong had a high ore grade and decided to use gravity separation to extract gold, and purchased equipment from Xinhai shaker manufacturer. A 6s shaker with a crank connecting rod device and special lubrication system. In the process of use, the recovery rate of roughing concentrate reached 77.78%, the stratification was obvious, and the purity of gold extraction was 3 percentage points higher than the theoretical value, and the customer was very satisfied.
