A mining agitation tank for pharmaceutical preparation. 【Processing capacity】: 0.094～14.8m³ 【Scope of application】: The chemical stirring tank is used for various chemical preparation operations before the flotation operation.
Xinhai medicinal mixing tank has good wear resistance and corrosion resistance, and has a long service life;
Strong ability to mix liquids and drugs;
Strong stirring ability.

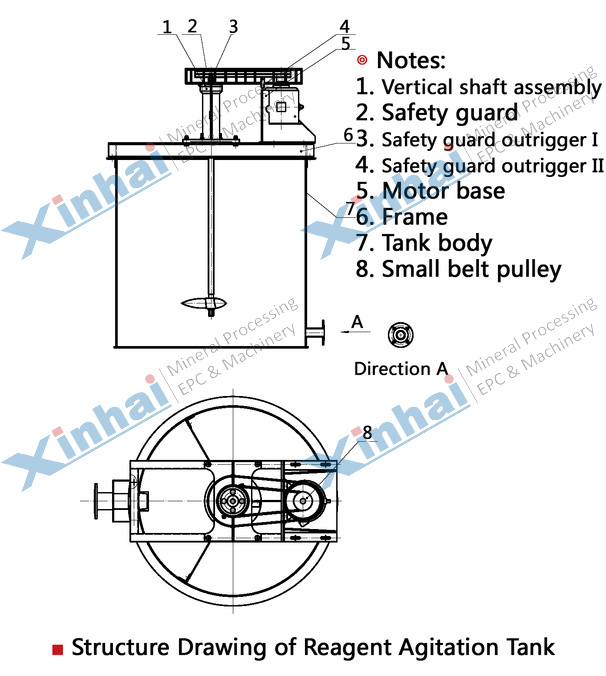

Agitation tank for chemical reagent adopts barrel shaped radiation circular spiral impeller for mixing operation by the mechanical stirring method. The motor drives the V- belt transmission device which drives the impeller. Reagents mix evenly under the rotation of the impeller preparing for the next step that mixes the ore slurry and reagents.
An agitation tank for chemical reagent is used for reagents preparation before flotation.
| Model | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model | Motor Power (kW) | Weight (kg) |
| BJW-500X600 | 0.094 | 493 | 200 | Y80L-4 | 0.55 | 120 |
| BJW-750X750 | 0.25 | 530 | 240 | Y100L-6 | 1.5 | 230 |
| BJW-750X1000 | 0.35 | 530 | 240 | Y100L-6 | 1.5 | 270 |
| BJW-1000X1000 | 0.58 | 530 | 240 | Y100L-6 | 1.5 | 420 |
| BJW-1250X1250 | 1.15 | 492 | 310 | Y100L1-4 | 2.2 | 490 |
| BJW-1500X1500 | 2.2 | 320 | 400 | Y132S-6 | 3 | 1310 |
| BJW-2000X2000 | 5.46 | 230 | 550 | Y132M2-6 | 5.5 | 1720 |
| BJW-3000X3000 | 14.8 | 210 | 700 | Y225S-8 | 18.5 | 4613 |

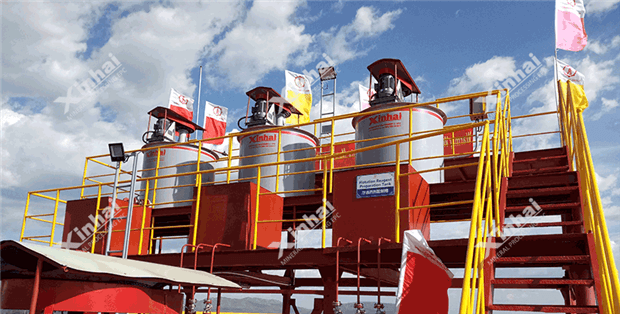

A large chemical plant in Henan chose Xinhai's chemical agitation tank after many comparisons due to the strong corrosiveness of the chemical and the high waste rate of the stirring tank. This flotation mixing tank adopts a propelling screw impeller, with uniform rotation speed, so that the material can be stirred evenly, and the cylinder is lined with Xinhai wear-resistant rubber, and the impeller is also wrapped with wear-resistant and anti-corrosion rubber, which can effectively resist the corrosion of chemicals , prolong the service life of the equipment, and overcome the long-term problems faced by the factory.
