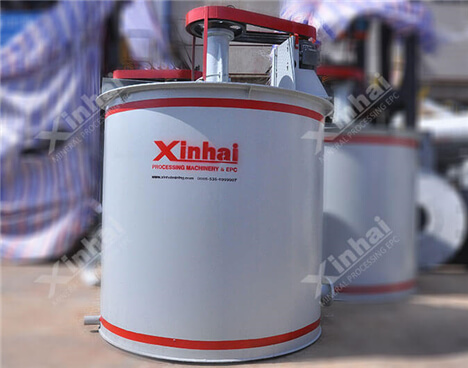

A traditional slurry mixing tank. 【Processing capacity】: 0.0785～45m³ 【Scope of application】: The ordinary stirring tank is mainly used for stirring the pulp before the flotation operation, so that the agent and the pulp are fully mixed. It can also be used in chemical and building materials industry slurry mixing and cyanide plants, sewage treatment plants and other industrial sectors.
The cylinder body can be lined with high wear-resistant rubber, which has strong anti-corrosion and wear-resistant performance;
The impeller is designed with strong slurry stirring ability;
Stable operation and easy maintenance.
Agitation tank is mainly applied in slurry stirring before the flotation, chemical and construction industry, cyanide chemical plant, sewage treatment plant, and coal plant etc.
| Model | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model | Motor Power (kW) | Weight (kg) |
| BJ-500X500 | 0.0785 | 493 | 160 | Y80L-4 | 0.55 | 120 |
| BJ-750X750 | 0.25 | 530 | 240 | Y100L-6 | 1.5 | 240 |
| BJ-1000X1000 | 0.58 | 530 | 310 | Y100L-6 | 1.5 | 680 |
| BJ-1500X1500 | 2.2 | 320 | 400 | Y132S-6 | 3 | 790 |
| BJ-1600X1800 | 2.6 | 331 | 400 | Y132M2-6 | 5.5 | 990 |
| BJ-2000X2000 | 4.4 | 230 | 550 | Y132M2-6 | 5.5 | 1800 |
| BJ-2000X2500 | 5.9 | 230 | 630 | Y160M-6 | 7.5 | 2106 |
| BJ-2500X2500 | 11.2 | 230 | 630 | Y160M-6 | 7.5 | 2766 |
| BJ-3000X3000 | 19.1 | 210 | 700 | Y225S-8 | 18.5 | 4613 |
| BJ-3500X3500 | 24 | 230 | 850 | Y225M-8 | 22 | 5980 |
| BJ-4000 X 4000 | 45 | 153 | 1000 | Y250M-8 | 30 | 8910 |

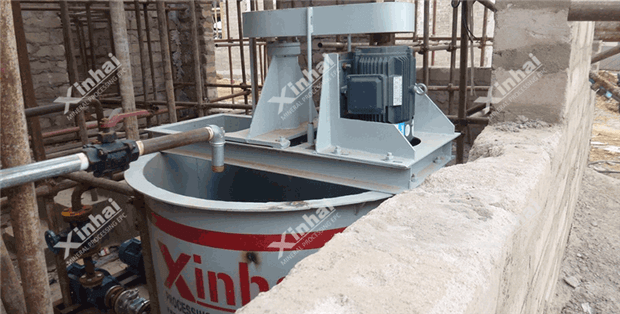

Shaanxi No. 1 iron ore dressing plant has high ore hardness, and the wear of the stirring tank during the stirring process before flotation is large, and the equipment is replaced frequently, which increases a lot of costs. The factory has been struggling to find a mixing machine with good wear resistance. After many consultations, I came to Xinhai Mining for purchase. Xinhai's mixing tank cylinder is lined with wear-resistant rubber plate, which greatly prolongs the service life and saves the cost for the factory. Today, Xinhai's ordinary mixing tank has been operating on the production line of this factory for five years and is still used in the production line.
