Spiral Classifier

Spiral Classifier

A device for classifying by means of different settling speeds of solid particles in the pulp. 【Processing capacity】: 10~1785 t/d 【Scope of application】: Suitable for coarse particle classification.

Advantages

The classifier earns its keep in the grinding circuit, and the design details below target exactly that duty.

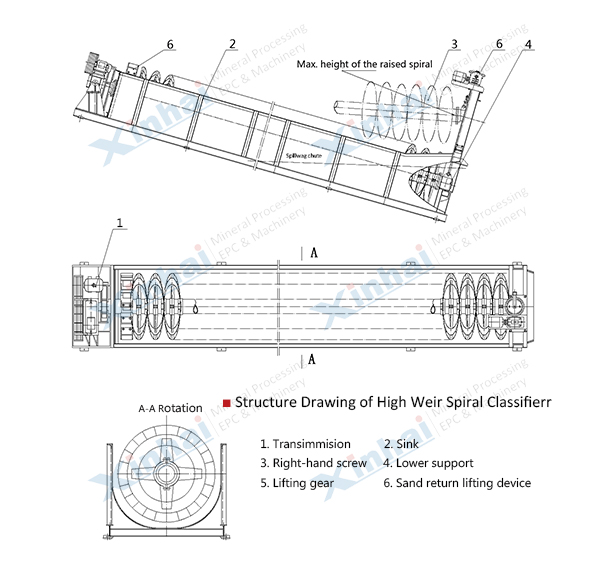

Working Principle


Ground pulp feeds into the tank at the middle of the settling zone. The slowly rotating spiral stirs the slurry continuously: fine particles stay suspended and travel to the overflow weir, while coarse particles sink to the tank bottom and are carried back up the incline by the spiral flights as mechanical return sand to the mill.

The split the circuit sees is therefore set by spiral speed, weir height and feed dilution, which is why classifier dilution is one of the first controls a mill operator reaches for when the circulating load drifts.

Technical Parameters

TypeModelRotating Speed of Spiral (r/min)Capacity of Sand Return (t/d)Capacity
 of
 Overflow
 (t/d)
Spiral
 Diameter
 (mm)
Spiral
 Length
 (mm)
Slope
 of
 Water
 Tank
Drive
 Motor
 Model
Drive
 Motor
 Power
 (kW)
Lifting
 Motor
 Model
Lifting
 Motor
 Power
 (kW)
Weight
 (kg)
Single Spiral ClassifierFLG-3007.730 ~8010-30Φ300390014 ~18Y100L1-42.2Manualdriven—668
FLG-5008145~26021-32Φ5004390Y112M-61600
FLG-7507.8256~65431-65Φ7505500Y132S-632716
FLG-10006.7473~102685Φ10006556Y132M2-65.54000
FLG-12005,6,71145~1600150Φ12006500Y132M2-65.5Y90L-41.57943
FLG-15002.5,4,61140~2740235Φ15008265Y160M-67.5Y100L1-42.211827
FLG-20003.6,5.53890~5940400Φ20008700Y160L-6/411;    15Y100L2-4320814
FLG-24003.66800580Φ24009130Y200L2-622Y112M-4424194
FLG-30003.211625890Φ300012500Y200L-430Y112M-4442188
Double Spirals Classifier2FLG-12005,6,72340~3200310Φ12006500Y132M2-65.5X2Y90L1-41.5X215840
2FLG-15002.5,4,62280~5480470Φ15008230Y160M-67.5X2Y100L1-42.2X222903
2FLG-20003.6,5.57780~11880800Φ20008400Y160L-415X2Y100L2-43.0X234621
2FLG-24003.63136001160Φ24009130Y200L2-622X2Y112M-44X242460
2FLG-30003.2233001785Φ300012500Y200L-430X2Y112M-44.0X273030


Success Cases

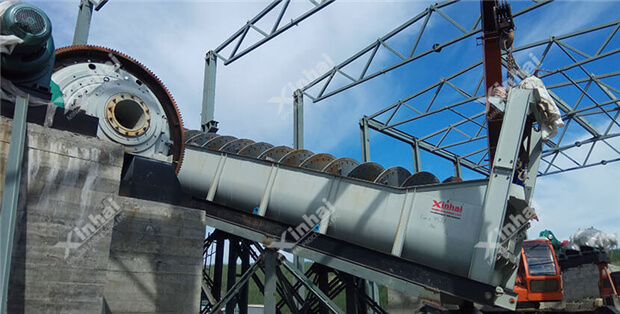

A mineral processing plant in Guangxi often wastes a lot of resources due to the uneven particle size of the ore during mineral processing. After that, Xinhaike Mining Equipment Co., Ltd. was found through Baidu search. The high weir type spiral classifier that can be pre-classified is recommended for customers. Xinhai high weir type spiral classifier classification overflow particle size ≥ 0.015mm, which just meets the needs of customers. The application effect is remarkable, and the beneficiation recovery rate is increased by 15%.
