A vibrating screen equipment for circular motion. 【Processing capacity】: 80～1700t/h 【Scope of application】: The circular vibrating screen is mainly used for material particle size classification, and can also be used for dehydration, desliming, and de-intermediation. It is used in mining, metallurgy, road construction, building materials, chemical industry and other industries.
The motion trajectory of the circular vibrating screen is close to a circle, so it is referred to as a circular vibrating screen. It is a new type of vibrating screen with multiple layers and high efficiency;
Adopt low-stress shock-absorbing spring, low running noise;
Adopt super-heavy and large oil-gap bearings, low operating temperature and long service life;
Adopt ring groove rivets and plate type screen box frame structure, the screen frame structure has high strength;
The processing capacity is large, the parts are versatile, and the maintenance is convenient.

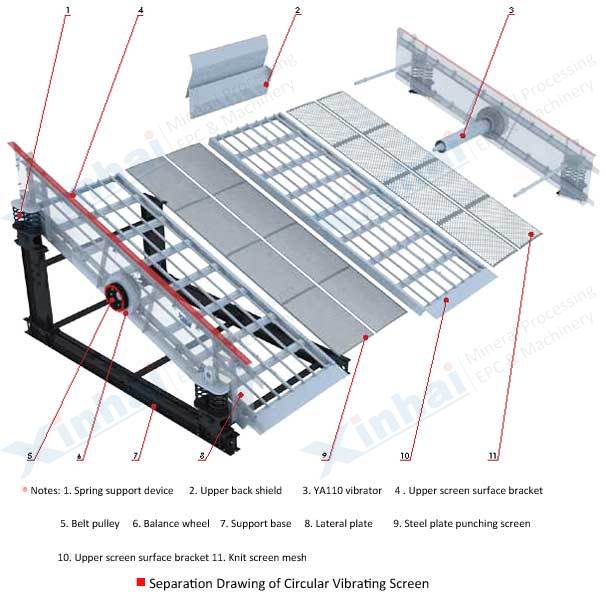

Round vibrating screen adopts an eccentric shaft vibration exciter and eccentric block to adjust amplitude. The vibrator installed on the sideboard of the screen box forces screen box to vibrate by the driving of motor.
The sideboard of the vibrating screen is made of high-quality steel plate. Connect sideboards, beams, and the exciter base by high strength bolts or ring groove rivet. Vibrating screen adopts seat installation, and screen angle can be adjusted by changing the height of spring support.
The motor of round vibrating screen are installed on the right side of screen box, and can also be installed on the left side of screen box. If no special requirements, the motor is installed on the right side.
| Model | Screen Surface | Max. Feed Size | Capacity (t/h) | Motor | Weight (kg) | |||
| Area (m2) | Dip Angle (° ) | Mesh Size (mm) | (mm) | Model | Power (kW) | |||
| YA1236 | 4.3 | 20 | 6~50 | 200 | 80~240 | Y160M-4 | 11 | 4905 |
| 2YA1236 | 80~240 | Y160M-4 | 5311 | |||||
| YA1530 | 4.5 | 80~240 | Y160M-4 | 4675 | ||||
| YA1536 | 5.4 | 100~350 | Y160M-4 | 5137 | ||||
| 2YA1536 | 400 | 100~350 | Y160L-4 | 15 | 5624 | |||
| YAH1536 | 30~150 | 160~650 | Y160M-4 | 11 | 5621 | |||
| 2YAH1536 | 30~150;6~50 | 160~650 | Y160L-4 | 15 | 6045 | |||
| YA1542 | 6.5 | 6~50 | 200 | 110~385 | Y160M-4 | 11 | 5515 | |
| 2YA1542 | 6~50 | 110~385 | Y160L-4 | 15 | 6098 | |||
| YA1548 | 7.2 | 6~50 | 120~420 | Y160L-4 | 5918 | |||
| 2YA1548 | 6~50 | 120~420 | Y160L-4 | 6321 | ||||
| YAH1548 | 7.2 | 30~150 | 400 | 200~780 | Y160L-4 | 6842 | ||
| 2YAH1548 | 7.2 | 30~150; 6~50 | 200~780 | Y160L-4 | 7404 | |||
| YA1836 | 6.5 | 30~150 | 200 | 140~220 | Y160M-4 | 11 | 5205 | |
| 2YA1836 | 6.5 | 30~150 | 140~220 | Y160L-4 | 15 | 5946 | ||
| YAH1836 | 6.5 | 30~150 | 400 | 220~910 | Y160M-4 | 11 | 5900 | |
| 2YAH1836 | 6.5 | 30~150;6~50 | 220~910 | Y160L-4 | 15 | 6353 | ||
| YA1842 | 7.6 | 6~150 | 200 | 140~490 | Y160L-4 | 15 | 5829 | |
| 2YA1842 | 7.6 | 6 ~150 | 140~490 | Y160L-4 | 15 | 6437 | ||
| YAH1842 | 7.6 | 30~150 | 400 | 450~800 | Y160L-4 | 15 | 6352 | |
| 2YAH1842 | 7.6 | 30~150; 6~50 | 450~800 | Y160L-4 | 15 | 7037 | ||
| YA1848 | 8.6 | 20 | 6~50 | 200 | 150~525 | Y160L-4 | 15 | 6289 |
| 2YA1848 | 8.6 | 200 | 150~525 | Y160L-4 | 15 | 6624 | ||
| YAH1848 | 8.6 | 30~150 | 400 | 250~1000 | Y160L-4 | 15 | 7122 | |
| 2YAH1848 | 8.6 | 30~150; 6~50 | 400 | 250~1000 | Y160L-4 | 15 | 7740 | |
| YA2148 | 10 | 6~50 | 200 | 180~630 | Y180M-4 | 18.5 | 9033 | |
| 2YA2148 | 10 | 6~50 | 200 | 180~630 | Y180L-4 | 22 | 10532 | |
| YAH2148 | 10 | 13~200 | 400 | 270~1200 | Y180M-4 | 18.5 | 10430 | |
| 2YAH2148 | 10 | 30~150; 6~50 | 400 | 270~1200 | Y180L-4 | 22 | 11190 | |
| YA2160 | 12.6 | 6~80 | 200 | 230~800 | Y180M-4 | 18.5 | 9926 | |
| 2YA2160 | 12.6 | 6~50 | 200 | 230~800 | Y200L-4 | 22 | 11249 | |
| YAH2160 | 12.6 | 30~150 | 400 | 350~1500 | Y200L-4 | 30 | 12490 | |
| 2YAH2160 | 12.6 | 30~150; 6~50 | 400 | 350~1500 | Y200L-4 | 30 | 13858 | |
| YA2448 | 11.5 | 6~50 | 200 | 200~700 | Y180 M -4 | 18.5 | 9834 | |
| YAH2448 | 11.5 | 6~50 | 400 | 310~1300 | Y200L-4 | 30 | 11830 | |
| 2YAH2448 | 11.5 | 30~150； 6~50 | 400 | 310~1300 | Y200L-4 | 30 | 13012 | |
| YA2460 | 14.4 | 6~50 | 200 | 260~780 | Y200L-4 | 30 | 12240 | |
| 2YA2460 | 14.4 | 6~50 | 200 | 260~780 | Y200L-4 | 30 | 13583 | |
| YAH2460 | 14.4 | 30~150 | 400 | 400~1700 | Y200L-4 | 30 | 13096 | |
| 2YAH2460 | 14.4 | 30~150; 6~50 | 400 | 400~1700 | Y200L-4 | 30 | 14455 | |

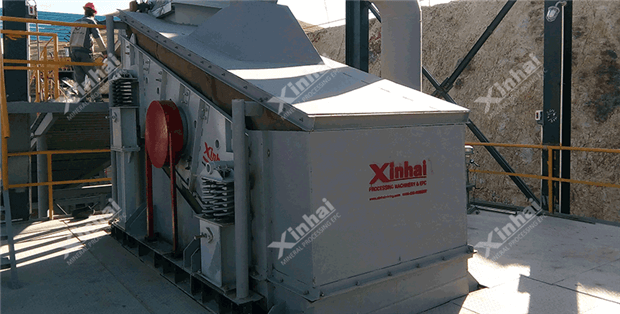

In a concentrate beneficiation plant in Mongolia, the ore composition is simple and the construction time is long. After the crushing equipment is improved later, the efficiency of screening and feeding is required to be improved. Under the condition of cost control, Xinhai circular vibrating screen is selected. This vibrating screen can carry out multi-layer screening. At the same time, the use of plate-type screen box makes the screen frame structure stronger and bears high ore strength. Finally, it is reasonable and effective. meet production requirements.
