A gold mining equipment that separates activated carbon from pulp. 【Processing capacity】: 100-500mm 【Scope of application】: The carbon screen is used for activated carbon isolation in the leaching tank of the cyanide carbon pulp plant.

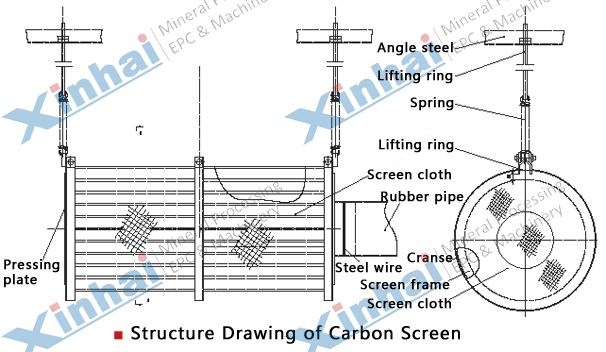

The carbon separator has no moving parts; the screen holes are not easy to be blocked; the structure is simple and the operation and maintenance are convenient; the cost is low; the service life is long;
It is used in cyanidation carbon pulp plant to separate activated carbon from pulp with a screen, so that the pulp flows to the next leaching tank, and the activated carbon is left in the leaching tank.
Carbon Screen is used to separate the activated carbon with the ore pulp, which lets the pulp flow to the next leaching tank, while the carbon stays in the first tank.
| Model | Frame diameter (mm) | Frame length (mm) | Screen hole specification (mesh) | Weight (kg) |
| SY100 | 100 | 1000 | 28 | 10 |
| SY125 | 125 | 1000 | 28 | 13 |
| SY200 | 150 | 1000 | 28 | 14 |
| SY250 | 200 | 1000 | 28 | 16 |
| SY300 | 300 | 1000 | 32 | 24 |
| SY500 | 500 | 1000 | 32 | 35 |

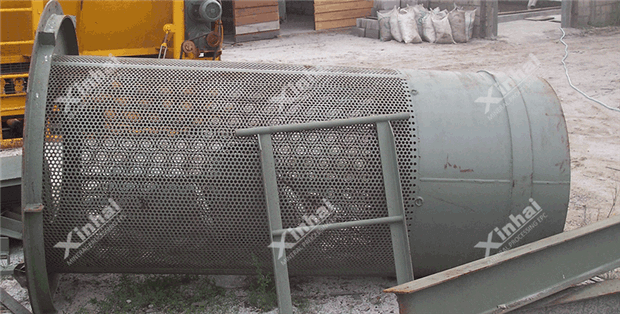

In a gold mine project of Xinhai in Sudan, the carbon-separating screen plays a good role in isolating the flow of the pulp in the leaching tank and the adsorption of gold by the activated carbon, preventing the mixing of the activated carbon and the pulp, increasing additional operations, and at the same time the material is strong Durable and reliable on site.
