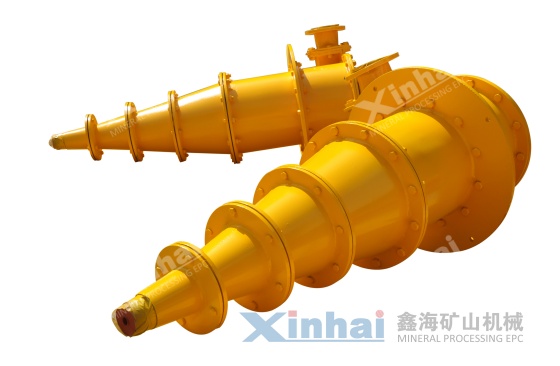

A hydrocyclone is a clever piece of equipment found in places like mines, chemical factories, and water treatment plants. If you’ve ever wondered how does a hydrocyclone work, it sorts things like dirt or ore by their size or weight, using a spinning motion instead of bulky mechanical gears. Imagine a device with a few basic parts: a pipe where the mixture flows in, a round body, a cone-shaped bottom, a top exit for light stuff, and a bottom exit for heavier bits.
People love hydrocyclones because they’re simple to use, don’t take up much room, and do a great job separating solids from liquids or organizing particles in a muddy mix. Since they have no moving parts, they’re sturdy and don’t break down as often as other machines. Honestly, it’s a relief not having to fix something every other day!

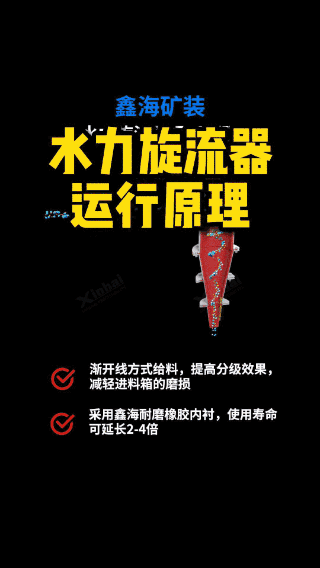

So, how does a hydrocyclone separator actually get the job done? It’s all about how the liquid moves inside. A slurry—basically a soupy mix of water and particles—rushes in through a side pipe with some force. This makes it spin fast, like water twirling down a sink.
Here’s the deal: as the slurry spins, heavier or bigger particles get flung to the outer edges because they feel a stronger tug from the spinning force. These chunks slide down the cone and leave through the bottom exit, called the underflow. Meanwhile, tiny or lighter particles hang out near the center of the swirl and float up to escape through the top pipe, known as the overflow. This trick, called centrifugal sedimentation, is what makes the hydrocyclone so effective.
Take a gold mine I heard about in Australia. They use a Xinhai hydrocyclone to handle slurry at a pressure of 0.1–0.3 MPa. The heavy gold bits sink to the bottom, while fine sand drifts up and out. It’s a clean split, no filters or screens needed. Pretty neat for such a basic setup, right?
A few key parameters can make or break how well a hydrocyclone works. Let’s break them down.
Feed Pressure: More pressure ramps up the spinning force, which can improve sorting. But if it’s too high—like over 0.5 MPa in some setups—the separation gets sloppy, mixing up particles you meant to keep apart.
Slurry Thickness: If the slurry’s too thick, it’s like stirring molasses, slowing everything down. Too watery, and the particles don’t sort right. A sweet spot, like 20–30% solids for mining slurries, usually does the trick.
Particle Size Range: Hydrocyclones are choosy about sizes. Separating big 50-micron particles from tiny 10-micron ones is a breeze, but splitting 20-micron from 15-micron particles? That’s trickier.
Shape of the Cyclone: The size of the round part, the cone’s angle, and the length of the vortex finder all tweak how the slurry spins. A wider cone lets more heavy stuff drop, while a narrow one sharpens the split.
The way the feed pipe is angled matters a ton, too. It’s set up to help the slurry spin smoothly without messing up the vortex. I once talked to a guy at a small plant who had a badly angled pipe—caused so much turbulence the hydrocyclone was practically useless. What a mess!
Folks sometimes get cyclones and hydrocyclones confused, but they’re different beasts. A cyclone deals with air and solid bits, like a dust collector sucking up sawdust in a carpentry shop. A hydrocyclone, on the other hand, handles liquids mixed with solids, like muddy water in a mine.
The setup’s different, too. Cyclones are built for air systems, while hydrocyclones are made for watery slurries. In mining, a hydrocyclone—sometimes just called a cyclone—works with a pump to keep the slurry moving. No moving parts in the hydrocyclone itself, just the pump doing the heavy lifting. It’s a simple combo that gets results.
Hydrocyclones show up in all kinds of industries because they’re so flexible. Here’s where they’re used most.
Mining: They sort particles before steps like flotation or grinding. In a copper mine, for instance, hydrocyclones separate chunky ore from fine dust to get it ready for processing.
Oil & Gas: They pull sand out of water from oil wells, keeping pipes clear. A single offshore rig might clean 10,000 barrels of water daily with these devices.
Chemical Factories: They separate tiny bits like catalysts or color pigments from liquids, making sure products come out clean.
Water Treatment: Hydrocyclones clean wastewater by removing grit. A city plant might process 500 tons of sludge a day using them.
Food Processing: They grab starch from potato scraps, saving material that would’ve been tossed out otherwise.
What’s awesome is how they handle massive amounts with little power. A hydrocyclone in a mine might process 1,000 liters a minute while using less energy than a small fan.
Hydrocyclones have come a long way with some cool upgrades. Here’s what’s new.
Multi-phase Sorting: Some models now handle gas, liquid, and solids all at once. Picture an oilfield separating air, water, and sand in one pass.
Stronger Materials: Linings made of ceramics or polyurethane hold up better against rough stuff like quartz-heavy slurries. Some last 5 years instead of just 6 months.
Smart Sensors: These keep an eye on pressure or flow changes, alerting workers to issues early. A 10% pressure drop might mean a clog’s coming.
Swappable Parts: You can replace bits like the vortex finder without swapping the whole unit, saving cash and time.
These changes make hydrocyclones way more dependable. A plant I read about cut downtime by 30% just by using ceramic-lined models. That’s a game-changer!
Hydrocyclones don’t need much upkeep, but a little care goes a long way. Here’s how to keep them running smoothly.
Check Regularly: Inspect the liners, especially near the feed pipe and bottom nozzle, for wear. A worn liner can cut efficiency by 15%.
Monitor Pressure: A sudden pressure shift could signal a clog. One plant caught a blockage early and dodged a 2-day shutdown.
Keep Pipes Clean: Clear the overflow pipe to stop buildup from throwing off the flow.
Swap Worn Parts: Replace eroded spigots or vortex finders to keep the shape right. A warped part can mess up the vortex and ruin the separation.
Stick to these habits, and the hydrocyclone will keep chugging along without major issues.
Limited precision for very fine cuts: Efficiency drops below ~10–20 µm for mineral slurries without special designs or very small cyclones.
Sensitive to operating conditions: Changes in pressure, feed solids, or viscosity shift the cut size and partition curve.
Bypass and short-circuiting: Fine particles can report to underflow with water; correction is needed to compare performance.
Roping & spray regimes: Improper apex sizing or high solids can cause roping (stringy underflow) or unstable sprays, both degrading classification.
Wear and plugging: High-silica or abrasive feeds erode the apex, vortex finder, and inlet; oversize trash or fibers can plug the apex.
Density contrast required: Poor separation when particle density is close to the fluid (near-neutrally buoyant or flaky, low-Re particles).
No true size cut like a screen: Hydrocyclones give probabilistic separation; screens give a more definite cut for coarse sizes.
Pump energy and NPSH: Requires steady feed pressure (typically ~0.1–0.3 MPa); inadequate pumping or surging harms performance.
Step 1: Define the duty & target cut size. Application: classification (closed-circuit grinding), desliming, thickening/dewatering, sand removal, etc. Target d50 and overflow/underflow % solids; required throughput (m3/h or t/h).
Step 2: Screen feed properties. Solids % by weight/volume, particle size distribution, true densities, and slurry viscosity/temperature.
Step 3: Choose a preliminary cyclone diameter. Use rules of thumb (then refine with vendor charts/models):
| Target d50 (typical) | Indicative Cyclone Diameter | Notes |
|---|---|---|
| 10–20 µm | 50–100 mm (2–4") | Low throughput per unit; high pressure; fine desliming. |
| 20–40 µm | 100–150 mm (4–6") | Fine classification in grinding circuits. |
| 40–75 µm | 150–250 mm (6–10") | Common mill classification range. |
| 75–150 µm | 250–400 mm (10–16") | Coarser classification / sand removal. |
| >150 µm | 400–660 mm (16–26") | High capacity, coarse cuts, thickening. |
Step 4: Size the internals. Vortex finder diameter & length govern overflow capacity and short-circuiting. Apex (spigot) controls underflow density and stability; cone angle/inlet design affect residence time and swirl intensity.
Step 5: Set operating window. Feed pressure typically 0.1–0.3 MPa (≈1–3 bar) for mineral slurries; keep steady (low surge). Feed solids commonly 20–35 % by weight for grinding classification (adjust per duty).

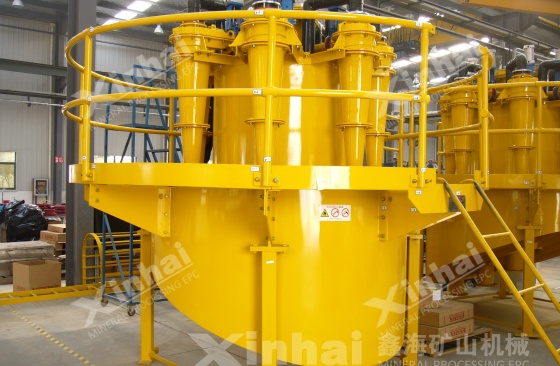

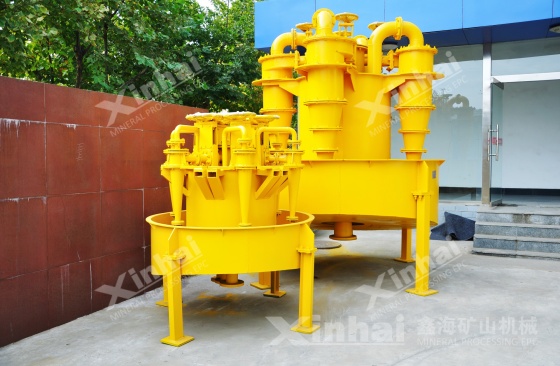

Step 6: Determine number of cyclones. Use a cluster (manifold) so several units run in parallel at design pressure; allow standby capacity for maintenance or ore changes.
Step 7: Select materials & wear protection. Rubber, polyurethane, ceramic liners chosen by abrasiveness, temperature, and chemistry.
Step 8: Integrate with the pump & controls. Size the pump for required flow and head (including losses) with adequate NPSH; add pressure gauges, densimeters, and flow meters to monitor performance.
Step 9: Validate and tune. Run plant trials, sample O/F and U/F to build the partition curve, check d50 and imperfection, and fine-tune apex/vortex finder or pressure.
Quick rule: Smaller cyclones & higher pressures give finer cuts but lower per-unit capacity and higher wear; larger cyclones give coarser cuts with higher capacity and lower pressure drop.
This article was prepared by Xinhai Mining, with over 20 years of hydrocyclone design and mineral processing experience.
