Wear-Resistant Slurry Pump

Wear-Resistant Slurry Pump

A wear-resistant slurry pump suitable for conveying slurry concentration within 65%. 【Processing capacity】: Flow≤1500m³/h 【Scope of application】: Xinhai wear-resistant slurry pump is suitable for handling abrasive slurry or corrosive fluid containing solid materials, exceeding that of metal and other types of pumps.

Advantages

Slurry pumping is a wear bill: the pump that moves the concentrate and returns the middlings sets a recurring cost line for the whole plant. The XPA series attacks that line through the lining material and the impeller speed it allows.

Working Principle

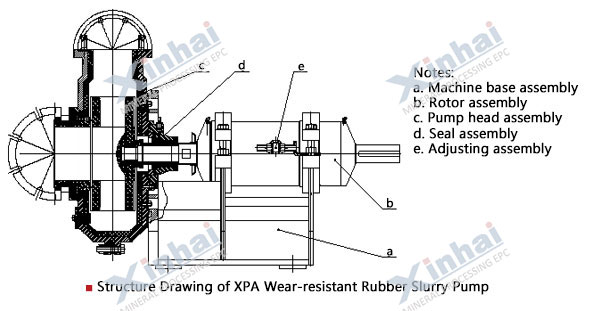

The motor drives the impeller; rotation does work on the slurry and raises its pressure and kinetic energy. Under inertia the slurry moves from the impeller center to its edge, leaves at speed into the volute press-out chamber, and exits through the discharge pipe. The main wear parts are the impeller and the sheath; both are rubber-lined against abrasive duties.

Model XPA 50/50 to 300/250 covers flow from 20 to 1500 m3/h and heads to 50 m; the model table lists motor power and efficiency for each size.

Technical Parameters

Model    & Spec.Flow
 (m3/h)
Max. Head
 (m)
Rotating Speed (r/min)Max. Rated Power (kW)Max. Efficiency
 (%)
Impeller
 Diameter
 (mm)
Weight
 (kg)
Overall Dimension (mm)
XPA    50/5020 ~6038800~24002251200156725X482X491
XPA    80/8030~10045600~21004553256326915X590X595
XPA    100/10060~16050600~16007557340440999 X 648 X 660
XPA    150/125100~26047400~1400110633726081280X736X758
XPA    200/150160~45047450~1200132694337361313X788X822
XPA    250/200300~90046400~12002507845412501600X812X956
XPA 300/250

400~1500

45300~9006007361019561698X966X1083


Success Cases

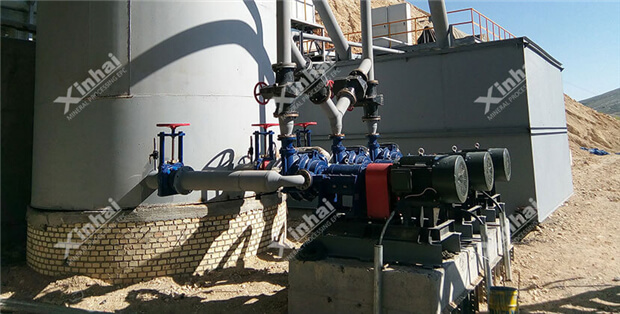

A gold ore dressing plant in Shandong has a very high slurry temperature after separation. After using a common slurry pump, the equipment damage rate is very high, and the dressing cost is embarrassing. Contact Xinhai Mining through the Internet search platform, and the technicians recommend the use of XPA wear-resistant rubber slurry pump. The equipment not only inherits the advantages of the original slurry pump, but also has a good elasticity to buffer the impact force of the slurry.
